480W 12V (4x Bifacial 120W) Complete MPPT Off Grid Solar Kit

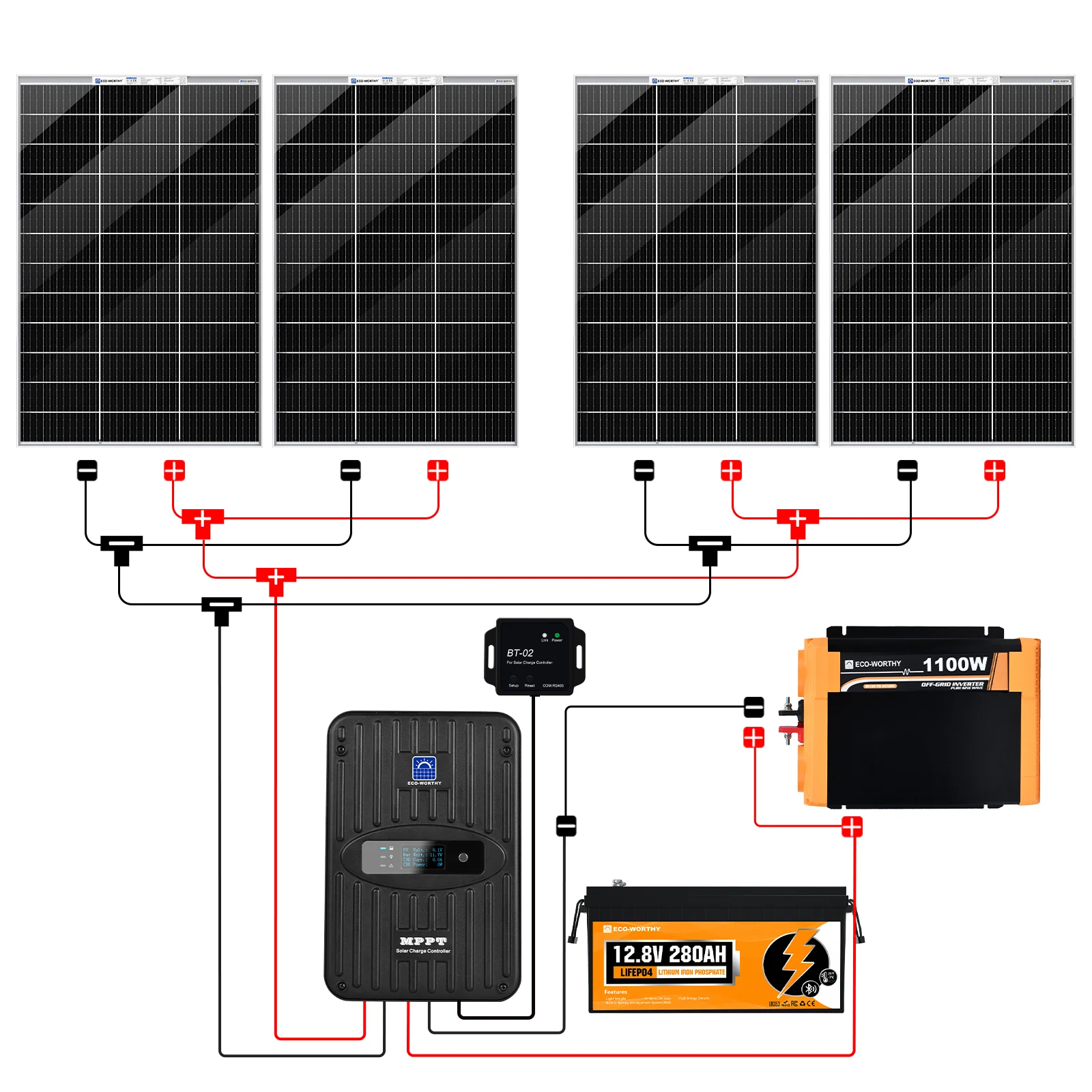

Package Includes
4x Bifacial 120W Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
4x Z Mounting Bracket
3x Y MC4 Connector
Inverter & Battery Bank Options-
Inverter & 1.2kWh Lithium Battery Bank (optional)
with
1x 1.5M Tray Cable
1x 1100W 12V-220V Pure Sine Wave Inverter
1x 12V 280Ah LiFePO4 Lithium Battery with Bluetooth

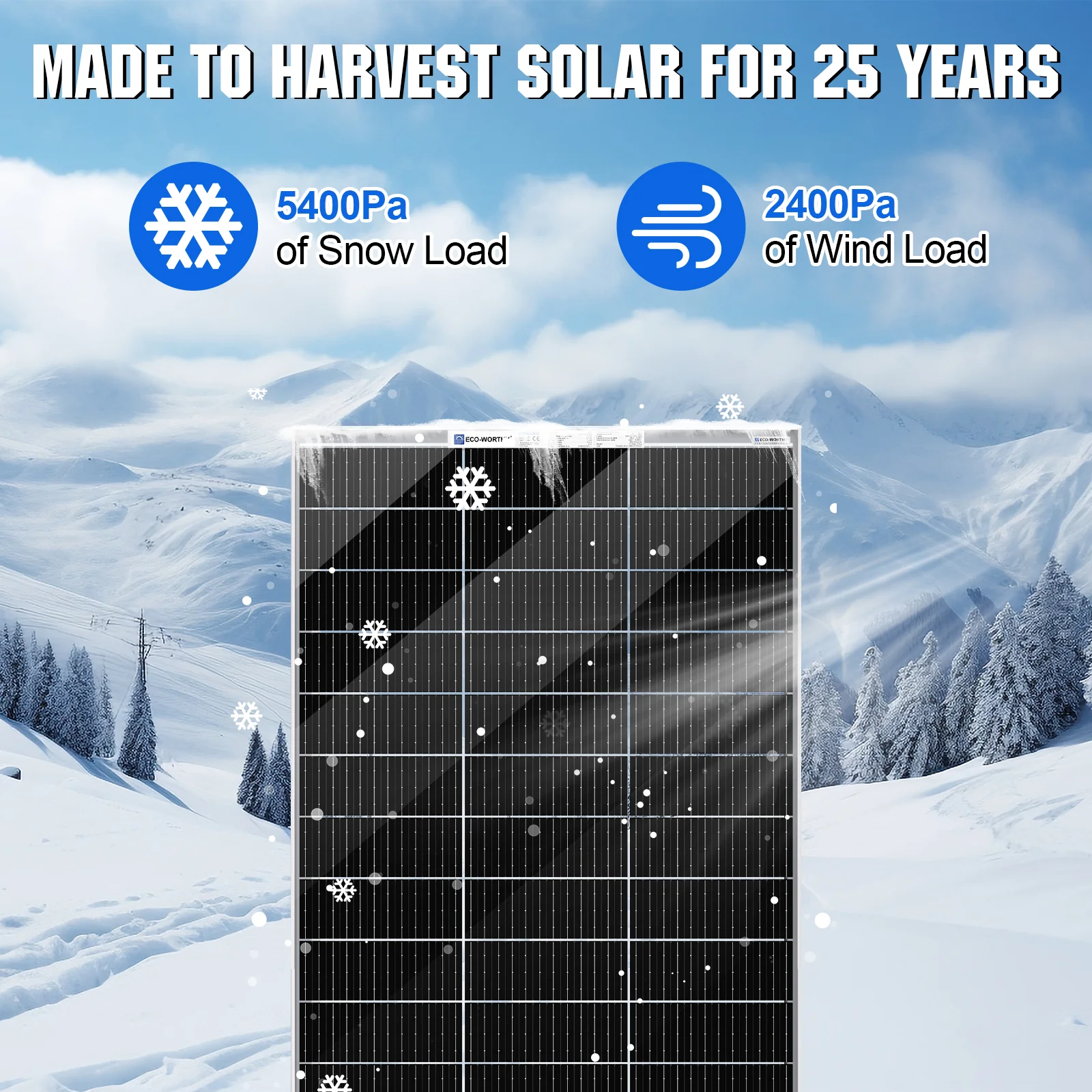

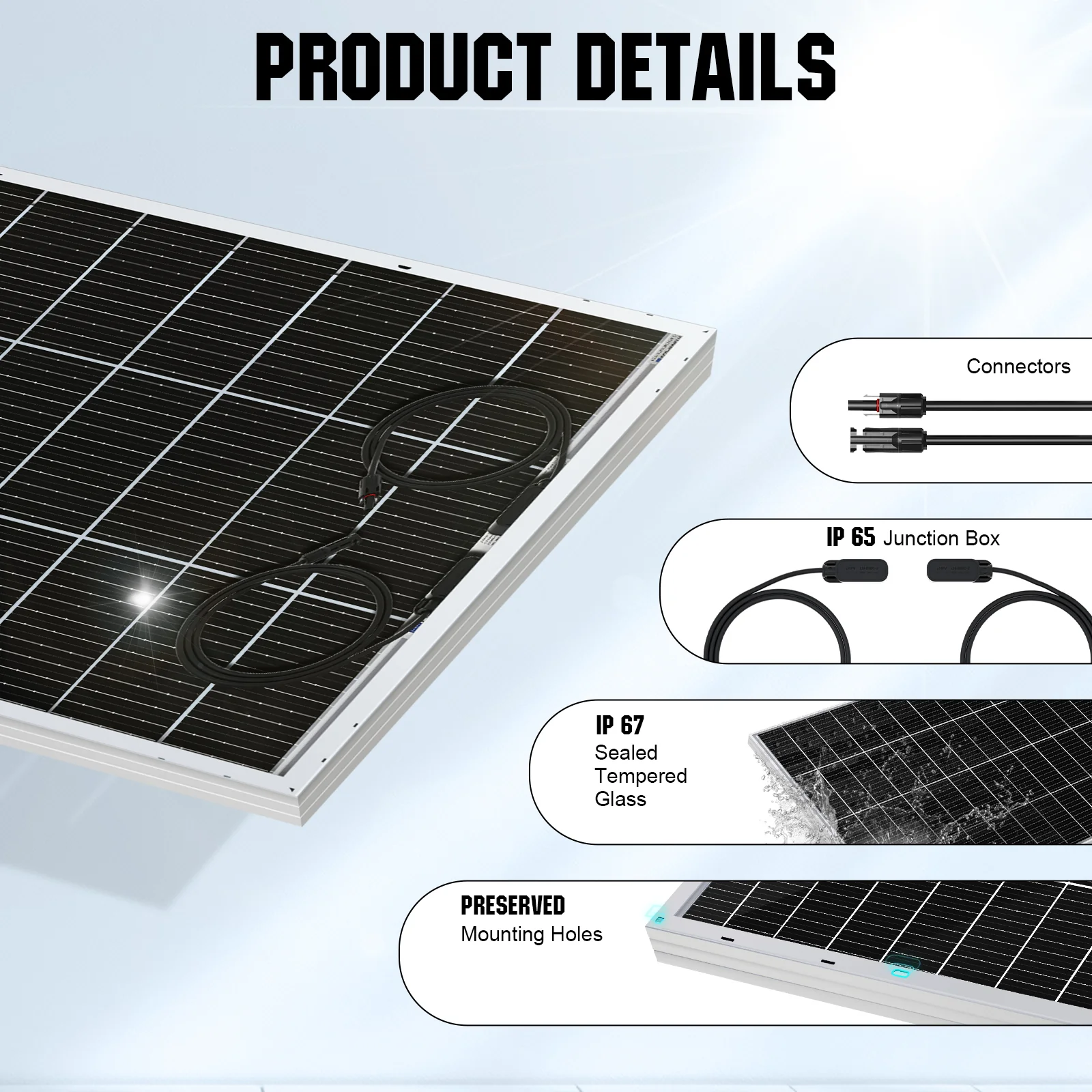

Bifacial 120W Monocrystalline Solar Panel
| Rated Power: 120W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 20.2V | Open Circuit Voltage(Voc): 24.5V |
| Short circuit current: 5.94A | Maximum current: 6.24A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 15.43 lbs(7.0 kg) |
| Size: 37.8x26.3x1.4in (960*670*35mm) |

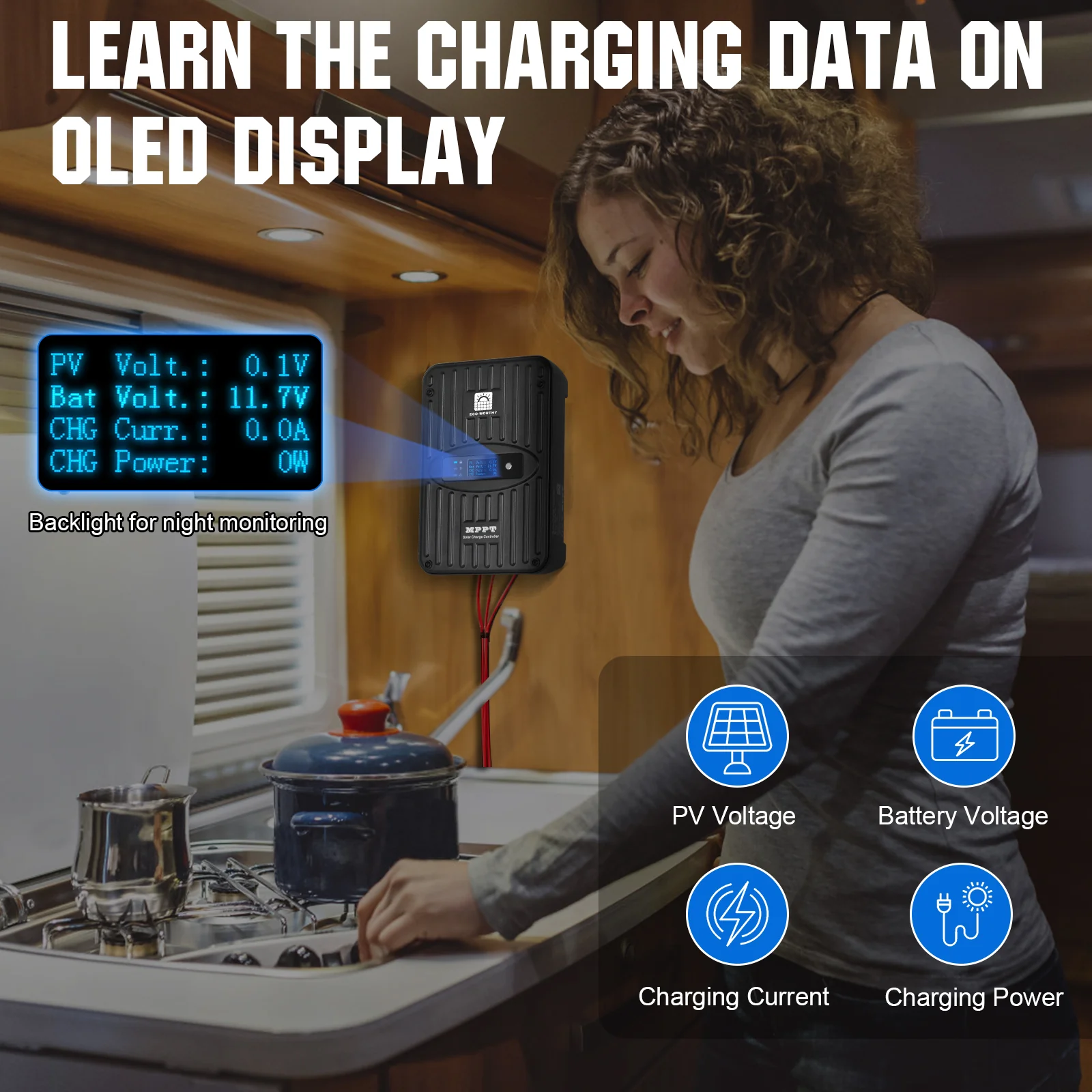

40A MPPT Solar Charge Controller
| Battery voltage：12V/24V | Max Solar Input Power：560/1120W |
| Charging mode：MPPT | Rated Load Current：20A |
| Charge Efficiency (Peak)：97% | Self-Consumption：1~2W |
| Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded | Size：220*148*64mm/8.7*5.8*2.5inch |
| Max Charge current：40A | Weight：1.5KG |
| Max.PV Open-Circuit Voltage：<100V |

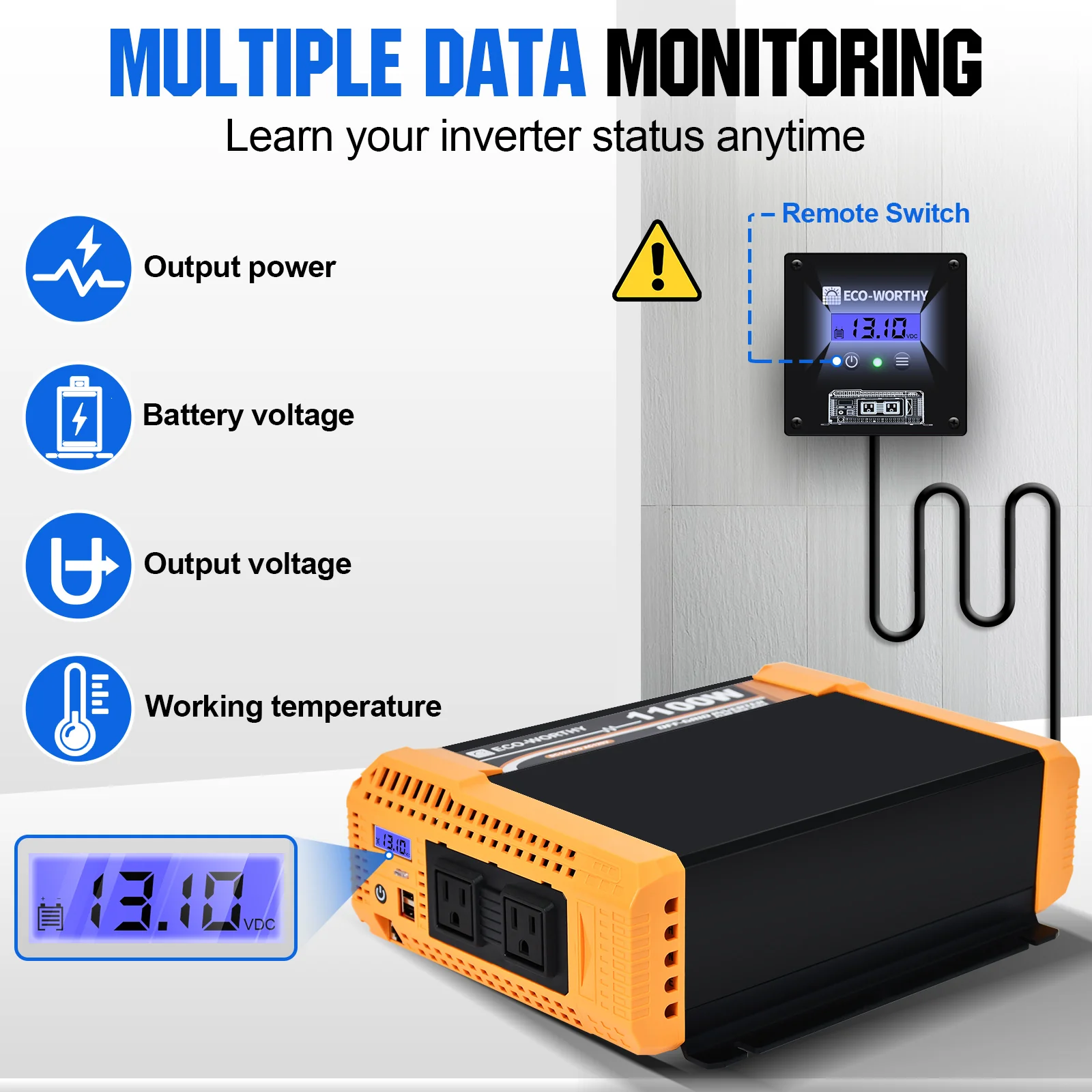

1100W 12V Off Grid Inverter
| Output Continuous Watts(W): 1100W+18W USB | Surge Capacity (PeakPower): 2200W |
| Rated Input DC (V,A): 12V Battery, 100A | Input Voltage Range: 10.5-16Vdc±0.3V |
| Rated Frequency (Hz): 50Hz±1 | Rated Output AC (V,A): 230Vac±10%, 4.8A |
| Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) | No Load Current: <1A |
| Optimum Efficiency: 85% min | Fuse (A): 30A*4 |
| FuseType: Internal Blade | Output Wave Form: Pure Sine Wave |
| Touch Temperature: 65℃(149℉)max | Operating Temperature: -20℃~40℃ (4℉~104℉) |
| Operating/Storage Humidity RH: 5~95% | Cooling System: Thermo Fan |
| THD: <4.5% | Dimensions (L*W*H): 13.5*9.8*4.1 in |
| Assembled Weight (kg): 7.67 lbs |

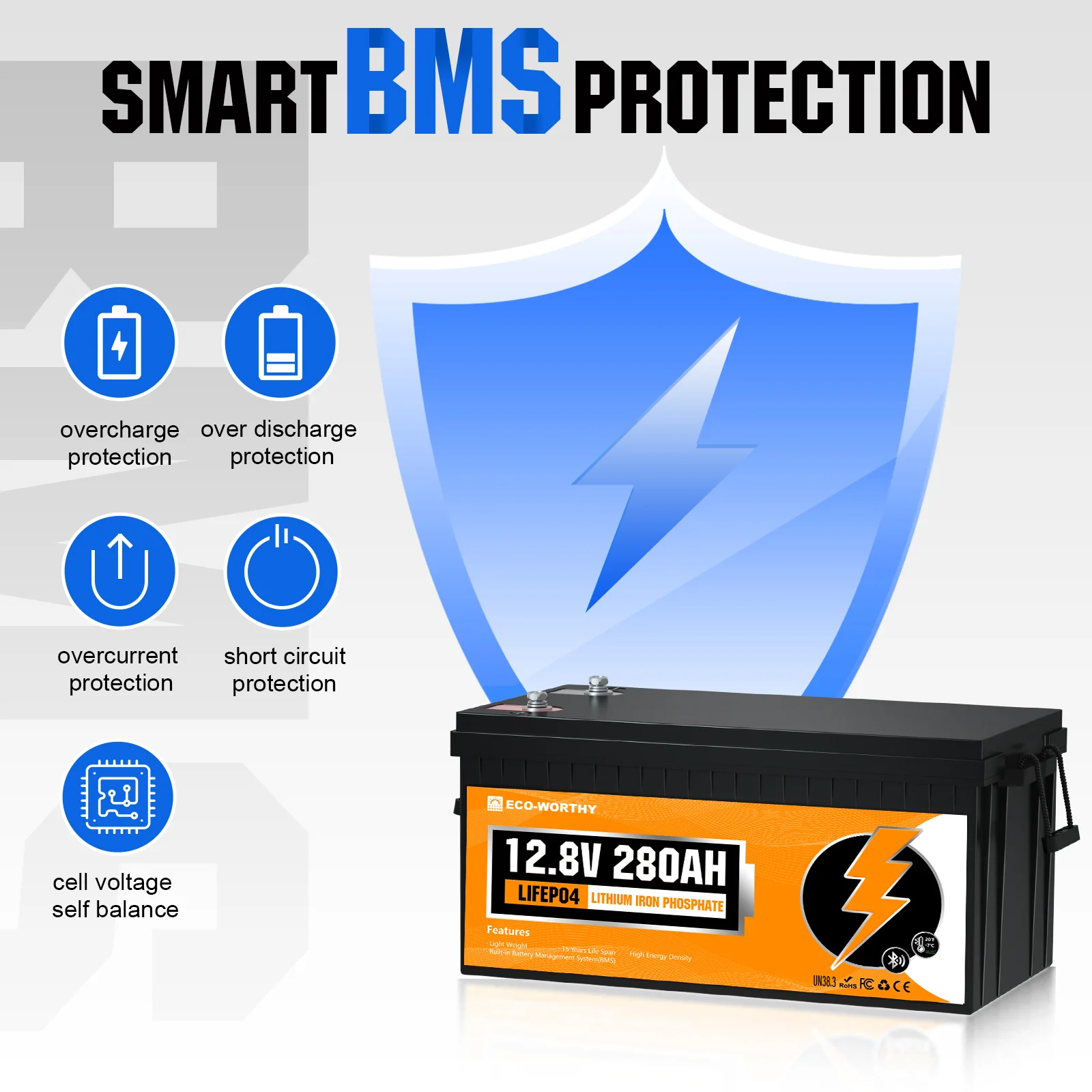

280Ah LiFePO4 Lithium Battery
| Battery Capacity: 280Ah | Battery Power: 3584Wh |
| Battery Voltage: 12.8V | Maximum Charging Current: 160A |
| Maximum Discharging Current: 200A | Max Charge Voltage: 14.5V |
| Discharge Cut-Off Voltage: 10V | Operating Temperature: -4°F to 140°F |
| Cycle Life: ≥6000 at 50% DoD (depth of discharge) | Size:453*238*221mm/17.8*9.37*8.7inch |
| Weight: 63.93lbs | Recommended charger:12v 20A charger |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
Y Branch Cable MC4 Connectors
| Compatible with MC4 solar connector. | Easy installation for 2 solar panels connected in parallel. |
