120W 240W 12V (1/2x120W) Complete Off Grid Solar Kit

Package Includes
120W (1-Panel) 12V Solar Kit
1x 120W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Z Mounting Bracket
Inverter & Battery Options-
Complete Lithium Kit (optional)
with
1x 1.5M Tray Cable
1x 600W 12V-220V Pure Sine Wave Inverter
1x 50Ah 12V LiFePO4 Lithium Battery

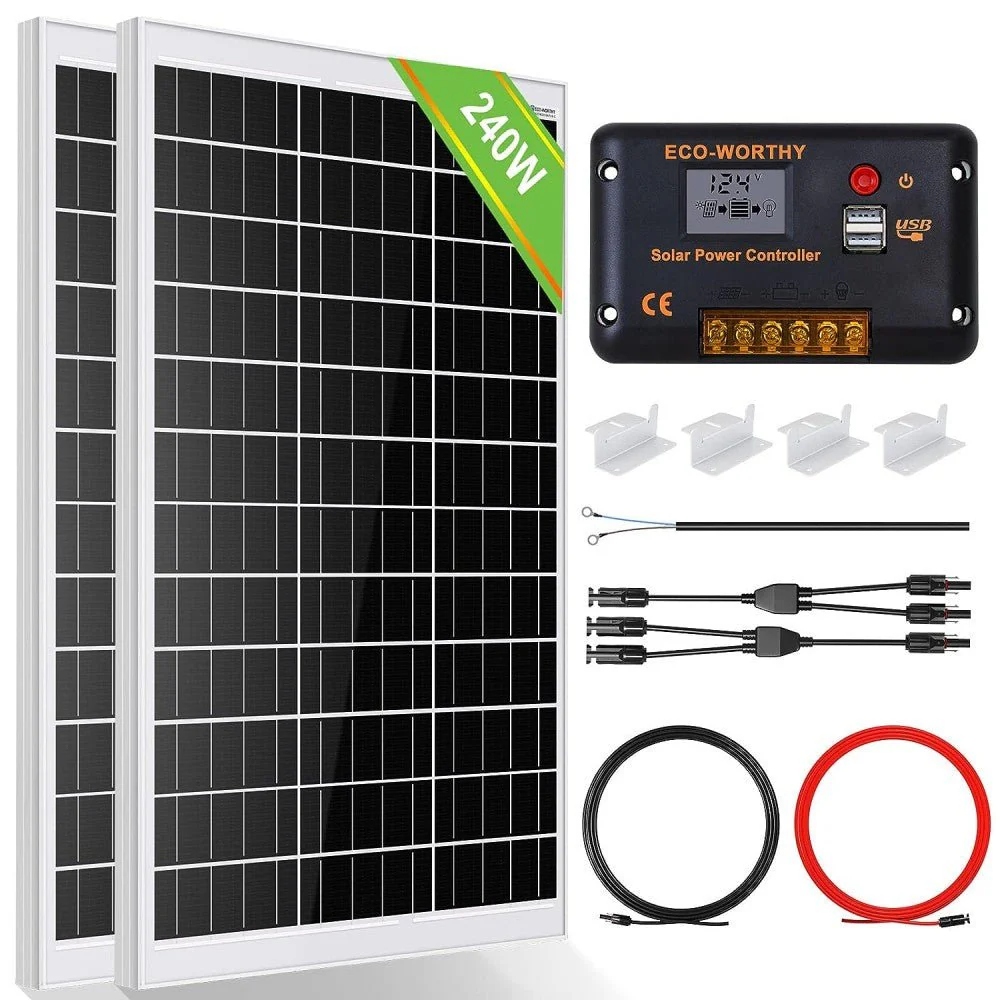

240W (2-Panel) 12V Solar Kit
2x 120W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
2x Z Mounting Bracket
1x Y MC4 Connector

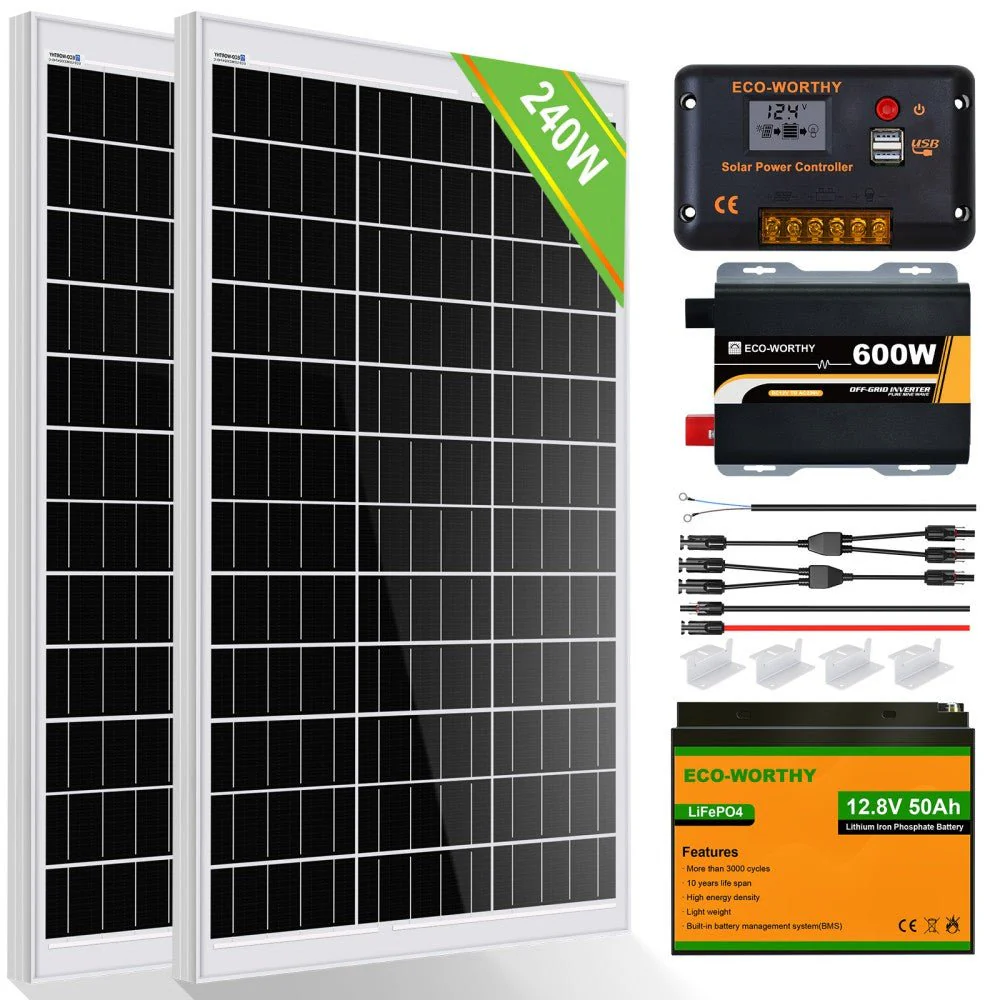

Inverter & Battery Options-
Complete Lithium Kit (optional)
with
1x 1.5M Tray Cable
1x 600W 12V-220V Pure Sine Wave Inverter
1x 50Ah 12V LiFePO4 Lithium Battery

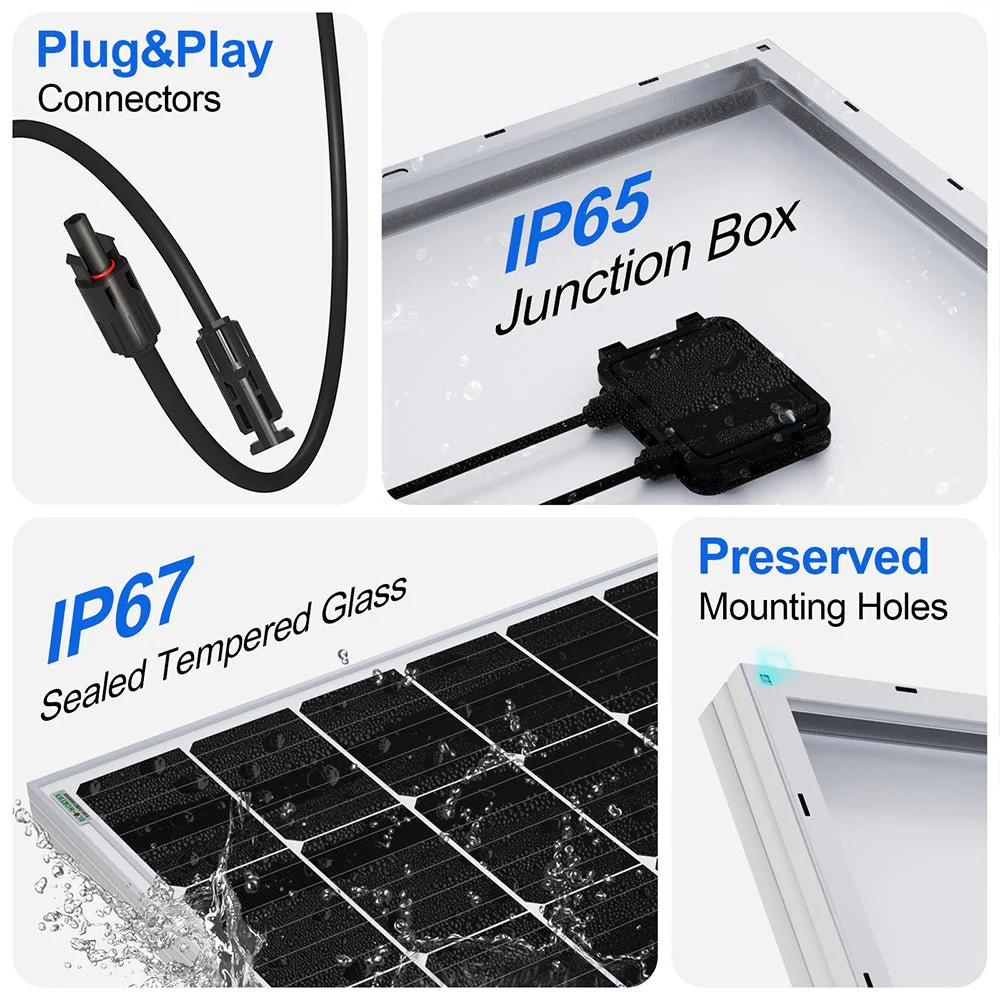

120W Monocrystalline Solar Panel

Rated Power: 120W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 20.2V	Open Circuit Voltage(Voc): 24.5V
Short circuit current: 6.24A	Maximum current: 5.94A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Length of extension cable: 90cm（2.95ft）
Size of extension cable: 4mm²（11AWG）/MC4 Connector	Size: 37.8" x 26.3" x 1.4"
Weight: 15.43 lbs(7.0 kg)

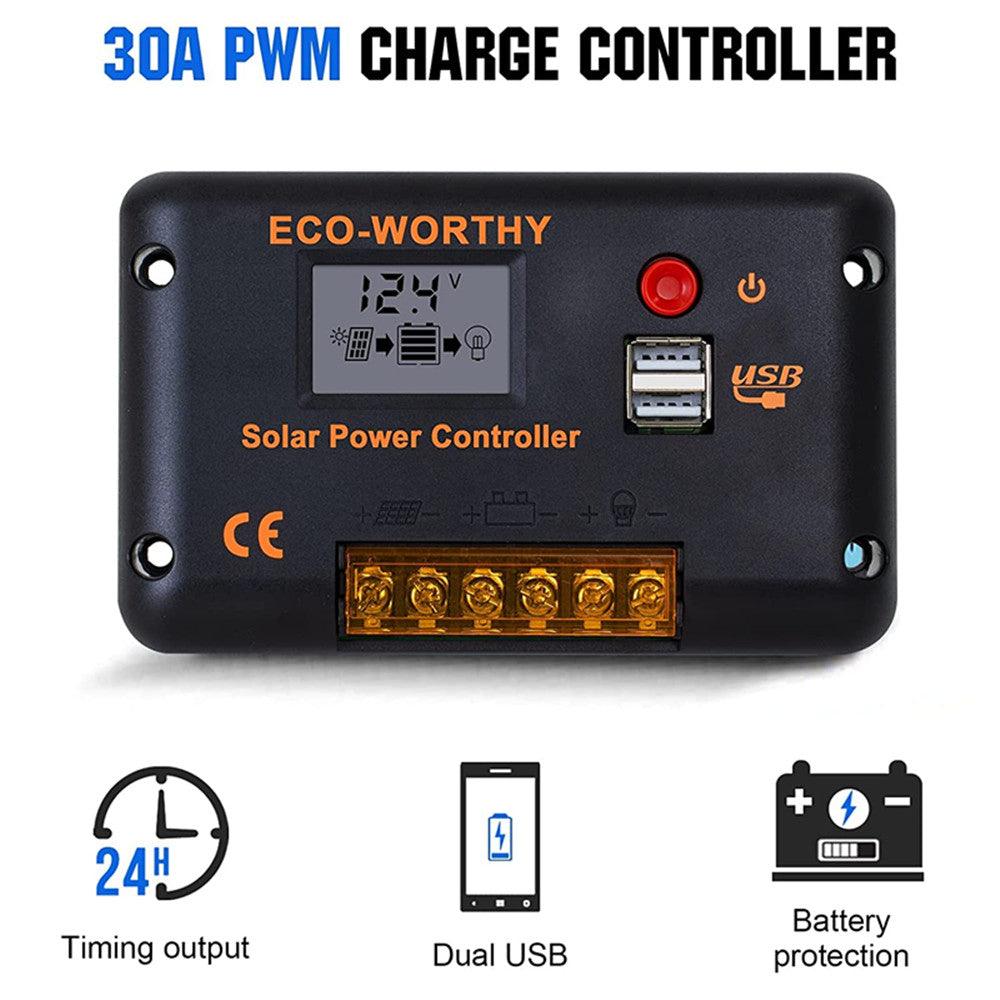

30A PWM Solar Charge Controller

Battery voltage: 12V/24V	Charging mode: PWM
Max Charge current: 30A	Discharge current: 30A
Max.PV Open-Circuit Voltage: <50V	USB Output: 5V/2A
Working Temperature: -20℃~60℃	Weight: 150g
Size: 138*82*30mm

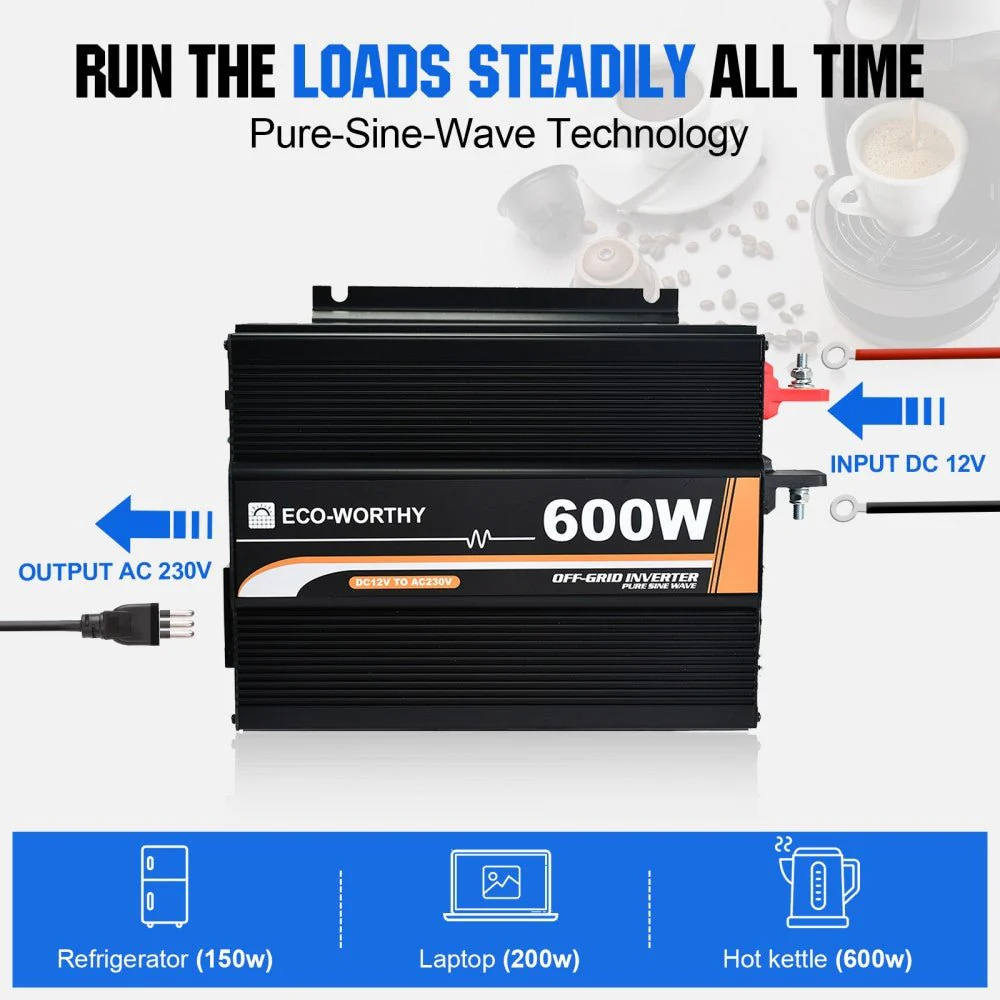

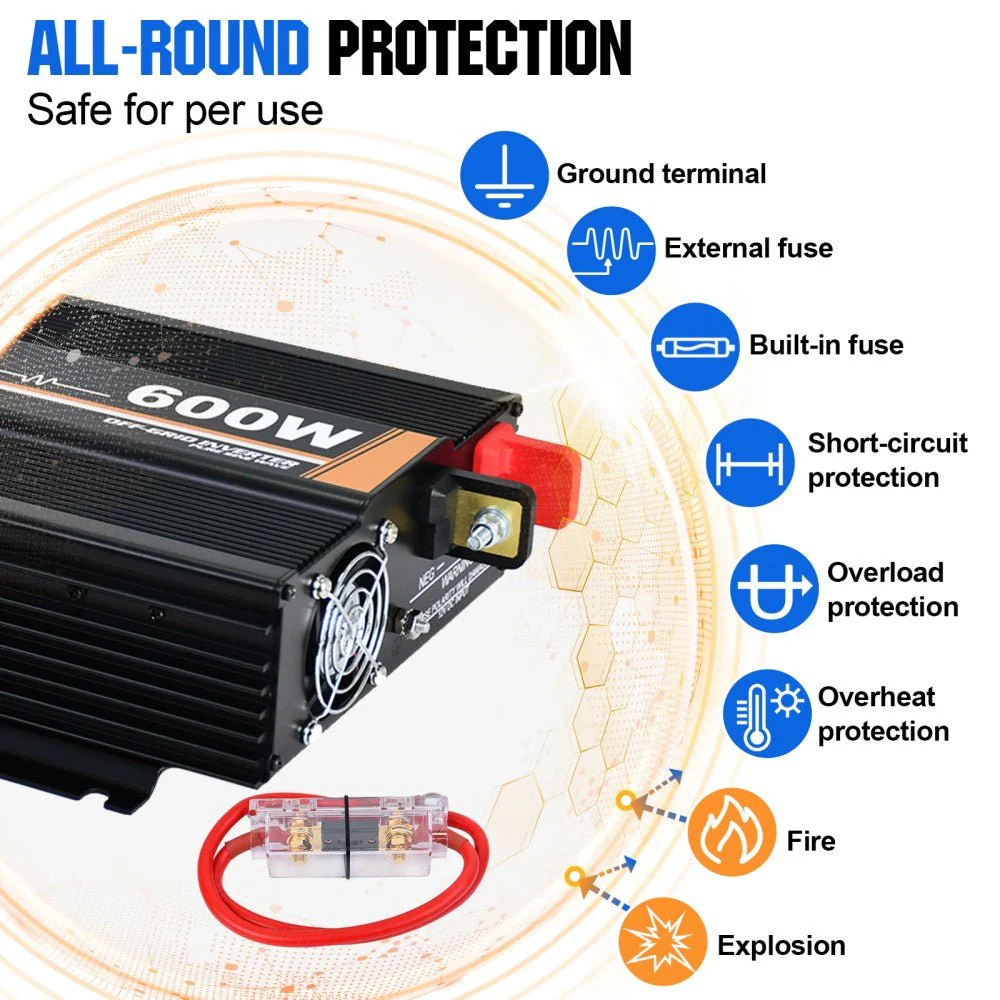

600W 12V Off Grid Inverter

Battery Input Voltage: 12V	Rated Power: 600W
Peak Power: 1200W	Output Waveform: Pure Sine Wave
Output Voltage: 220Vac	USB Output: 5V 1.2A
Extension Cable: 6mm²,9AWG,1 meter	Output Frequency: 50HZ ± 0.3HZ
AC Output Sockets: 1	Temperature: -20℃-40℃

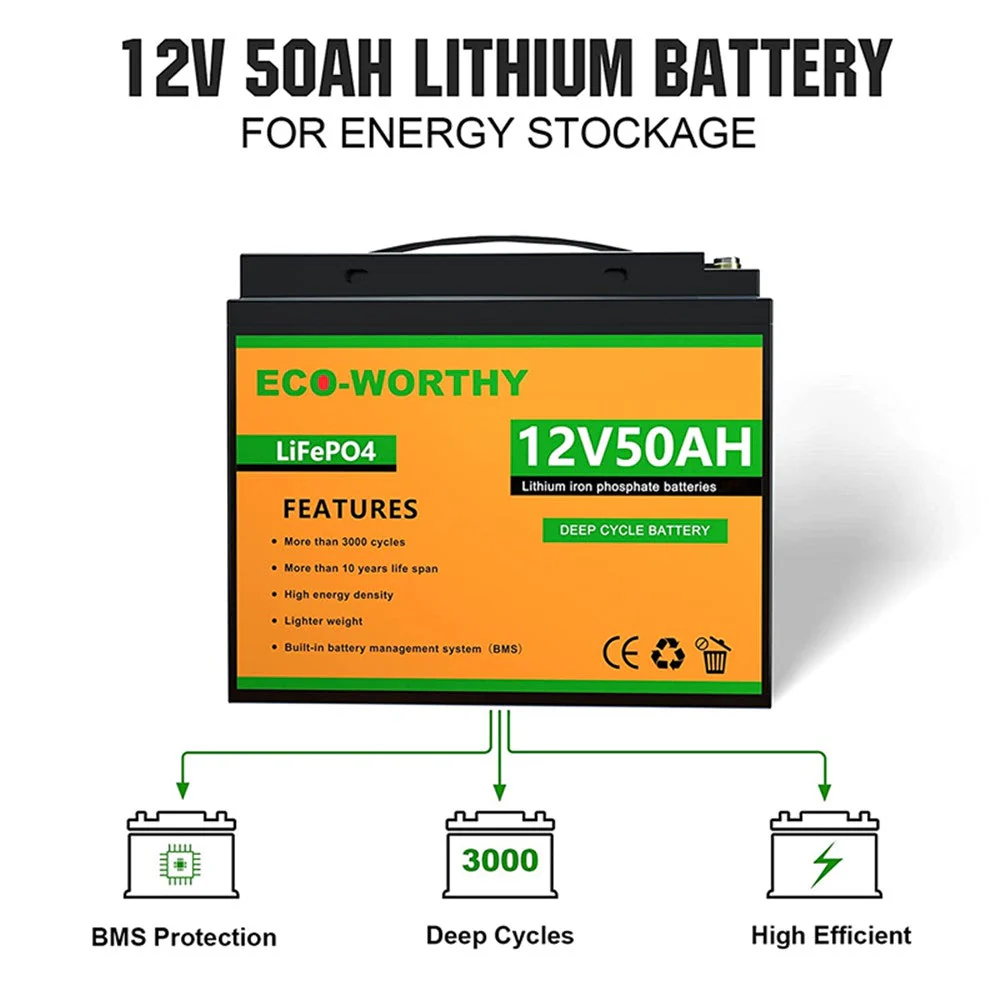

50Ah LiFePO4 Lithium Battery

Battery Capacity: 50ah	Battery Power: 640Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 50A/50A
Charge Temperature Range: 0-55℃	Disharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.5V	Discharge Cut-Off Voltage: 10V
Screw size: M6	Battery Size: 223*135*185mm（8.8*5.3*7.3inch）
Battery Weight: 4.82kg（10.62lb）

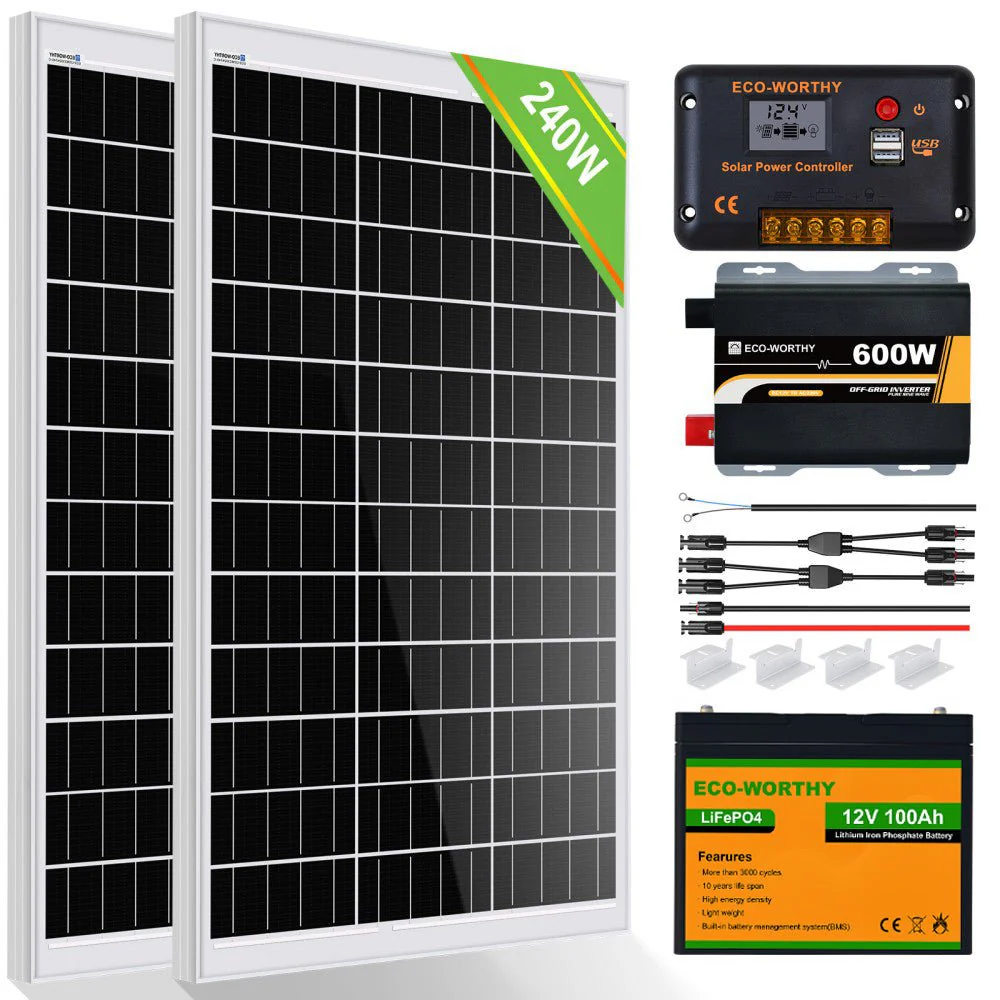

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 1280Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 100A/100A
Charge Temperature Range: 0-55℃	Discharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.6V	Operation Voltage: 10-14.6V
Screw size: M8	Battery Size: 260*168*214mm(10.24*6.61*8.43inch）
Battery Weight:10.5kg(23.15lbs)

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
