120W 240W 12V (1/2x Bifacial 120W) Off Grid Solar Kit with RV Mounting Brackets

Package Includes
120W (1-Panel) 12V Solar Kit
1x Bifacial 120W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Motorhome Mounting Brackets Kit
240W (2-Panel) 12V Solar Kit
2x Bifacial 120W Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
2x Motorhome Mounting Brackets Kit
1x Y MC4 Connector

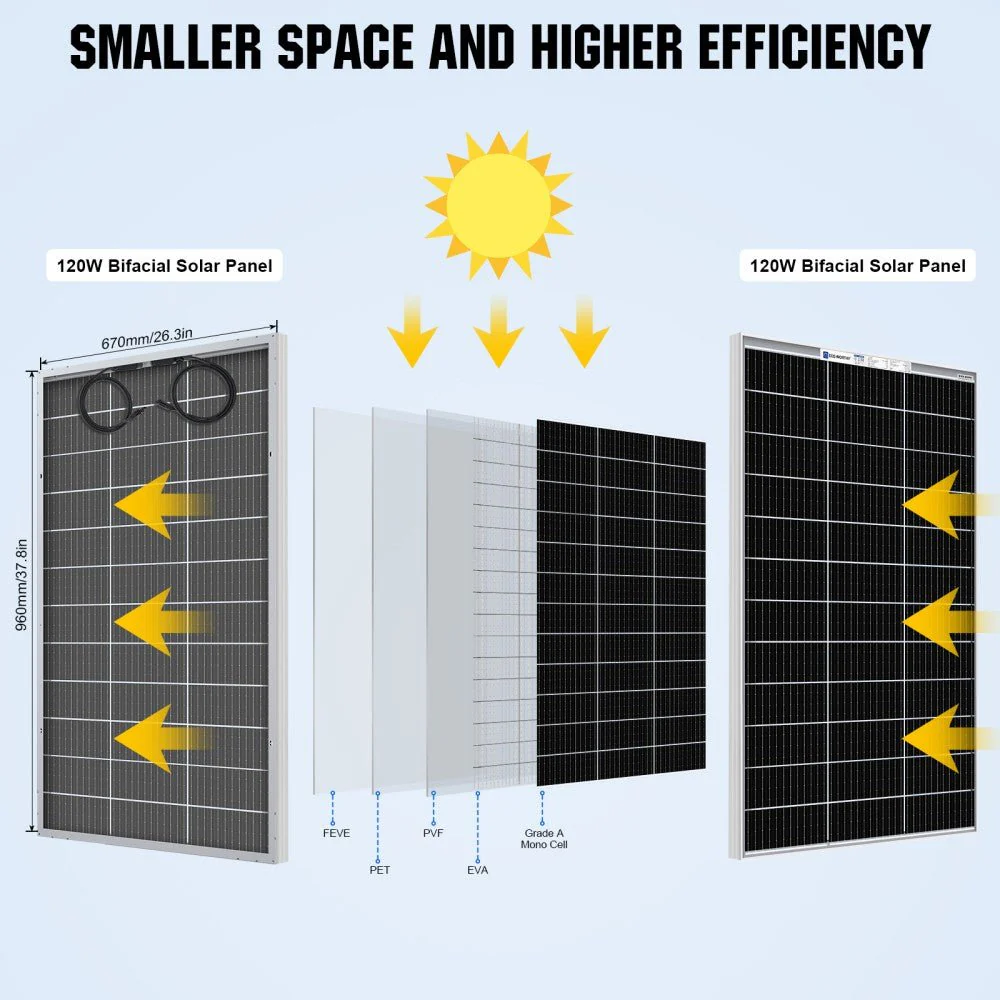

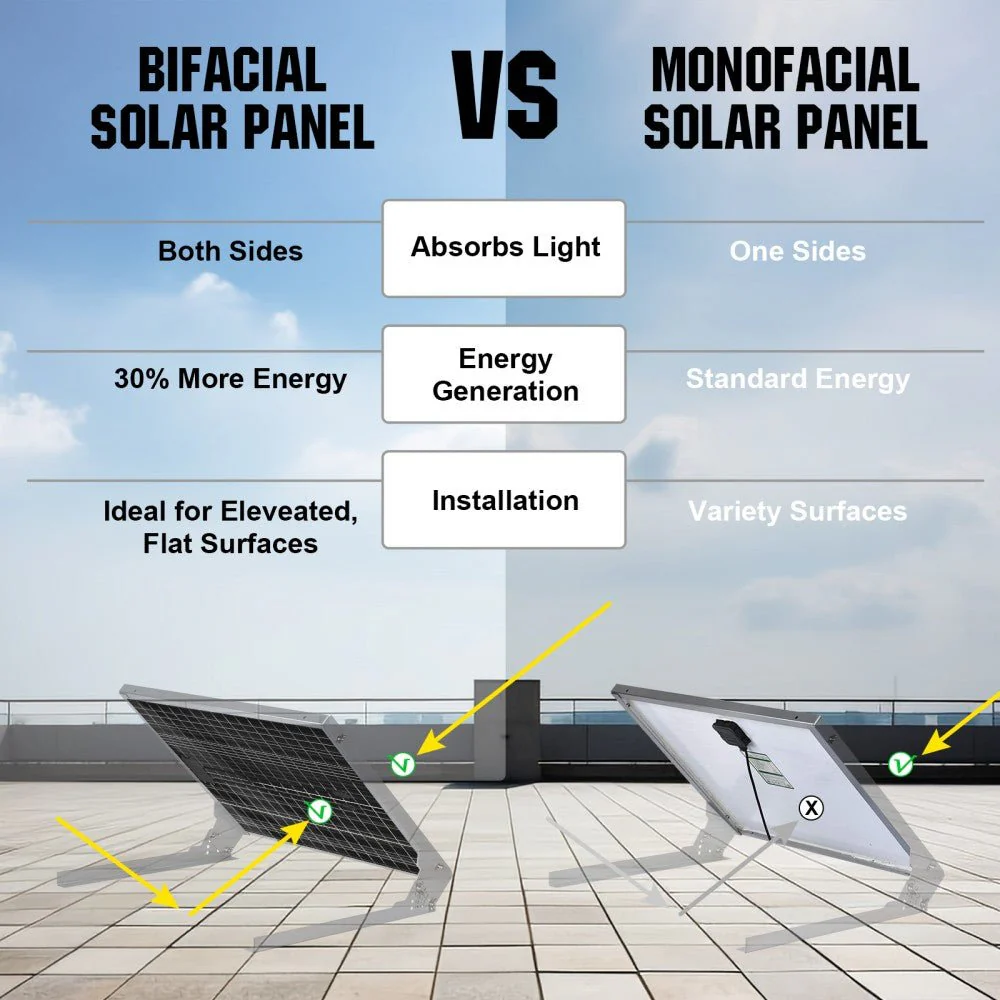

Bifacial 120W Monocrystalline Solar Panel

Rated Power: 120W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 20.2V	Open Circuit Voltage(Voc): 24.5V
Short circuit current: 5.94A	Maximum current: 6.24A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 15.43 lbs(7.0 kg)
Size: 37.8x26.3x1.4in (960*670*35mm)

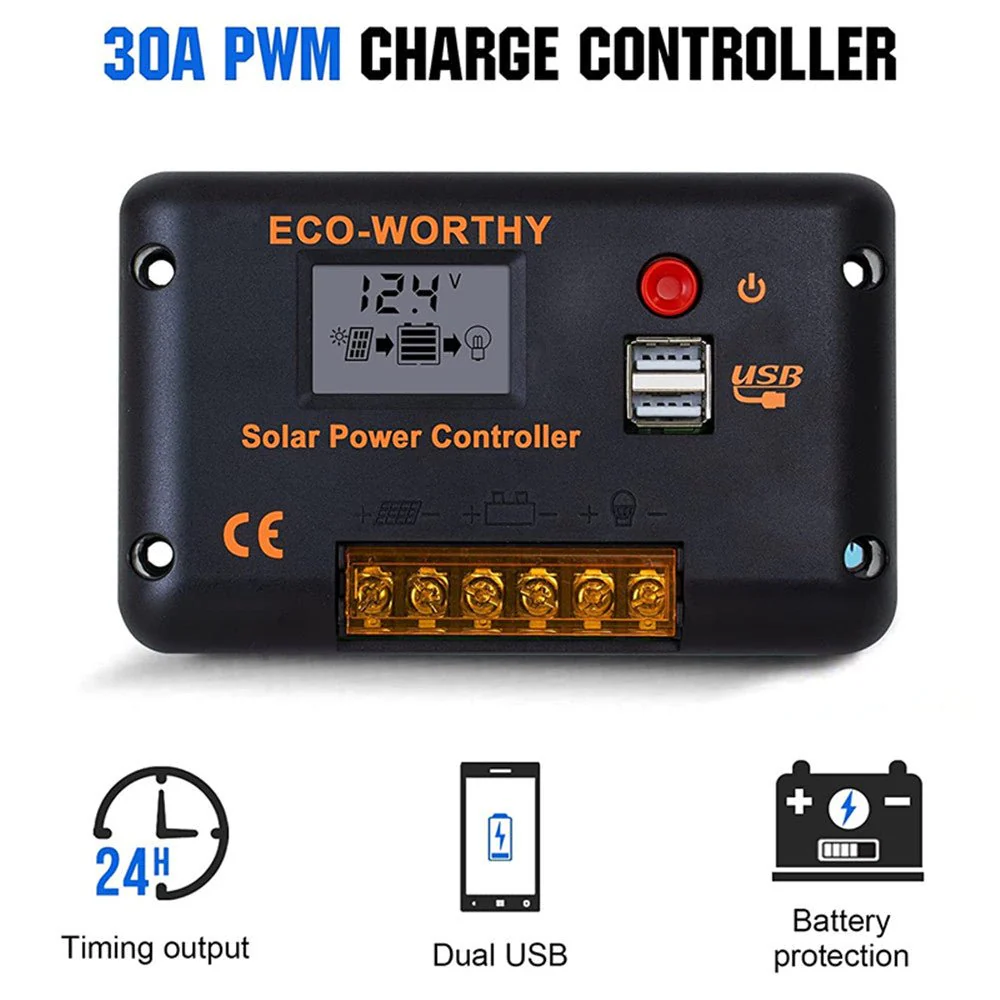

30A PWM Solar Charge Controller

Battery voltage: 12V/24V	Charging mode: PWM
Max Charge current: 30A	Discharge current: 30A
Max.PV Open-Circuit Voltage: <50V	USB Output: 5V/2A
Working Temperature: -20℃~60℃	Weight: 150g
Size: 138*82*30mm

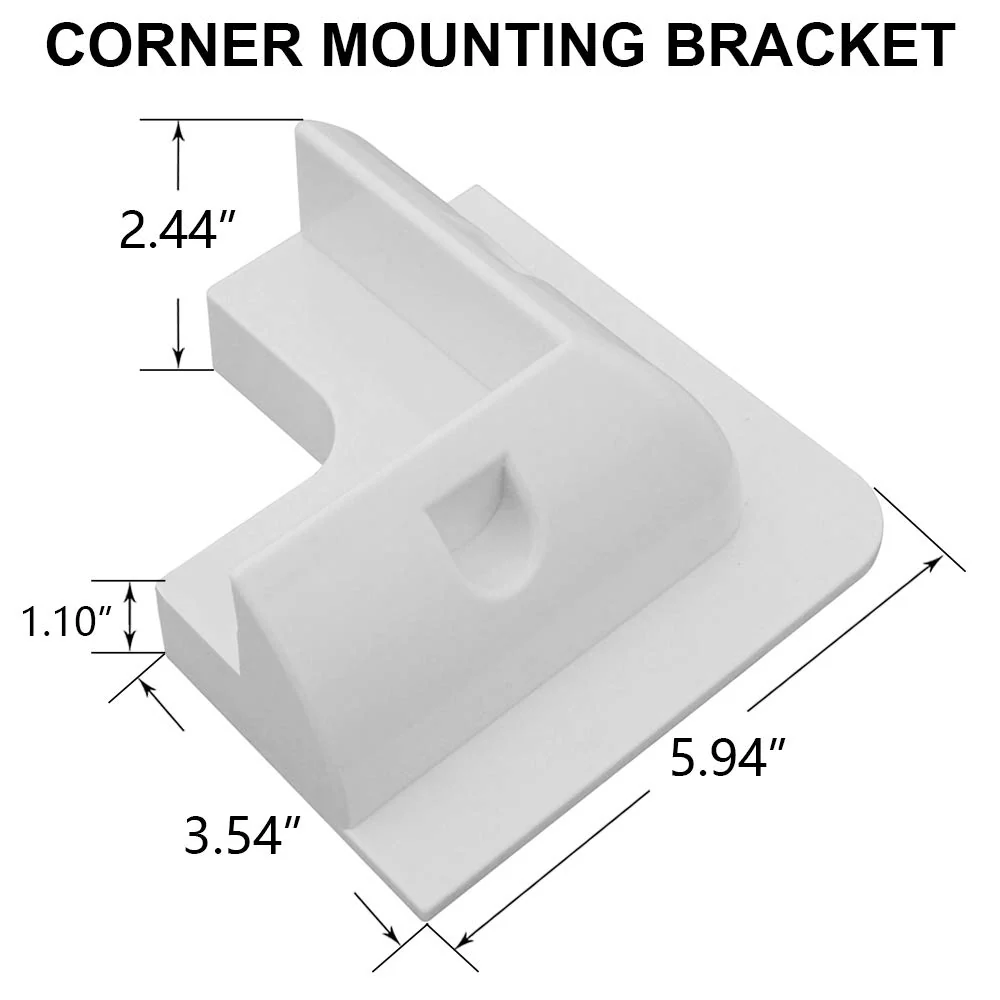

Corner Mounting Brackets

Ideal for bonding to roof, no need for drilling.

Ideal for motorhomes, campervans, caravans, lorries, buses, boats and yachts.

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

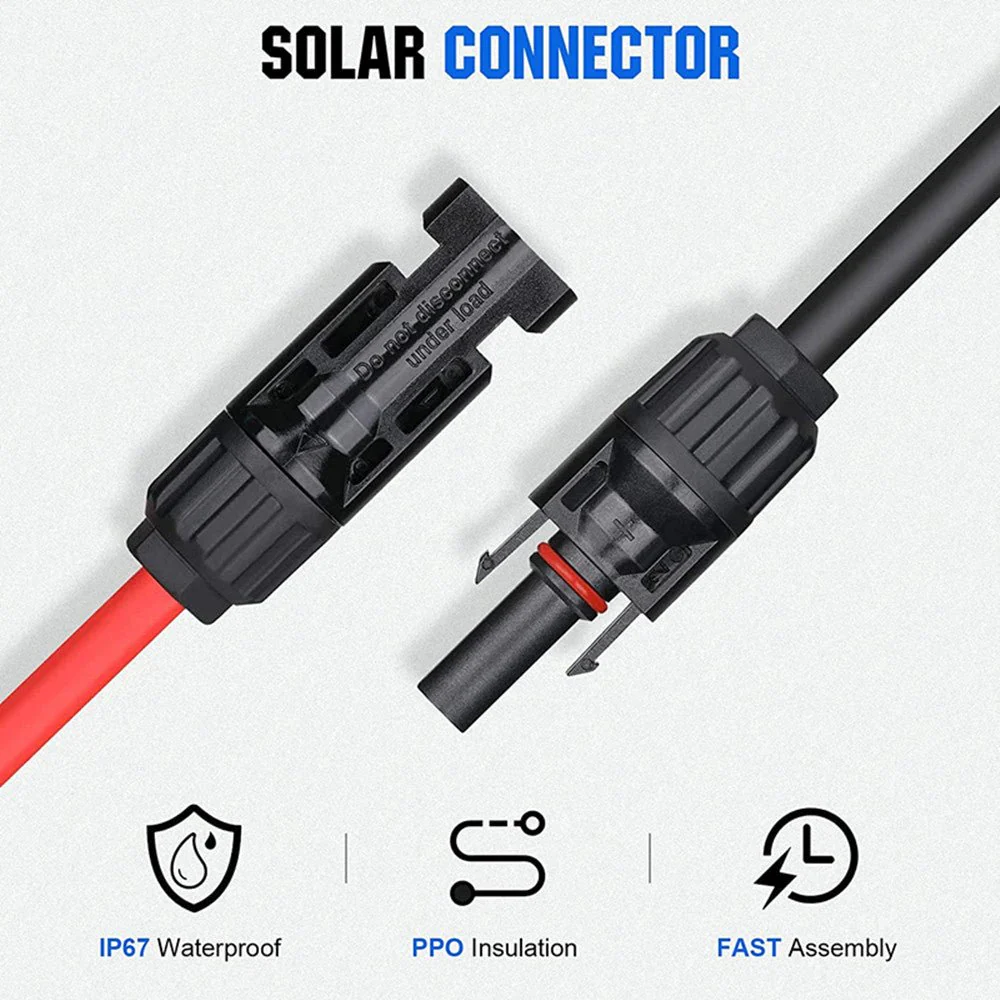

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
