130W 260W 520W 12V 1/2/4-Panel Off Grid Solar Kits
Package Includes
130W (1-Panel) 12V Solar Kit
1x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x 1.5M Tray Cable
260W (2-Panel) 12V Solar Kit
2x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Y MC4 Connector
1x 1.5M Tray Cable

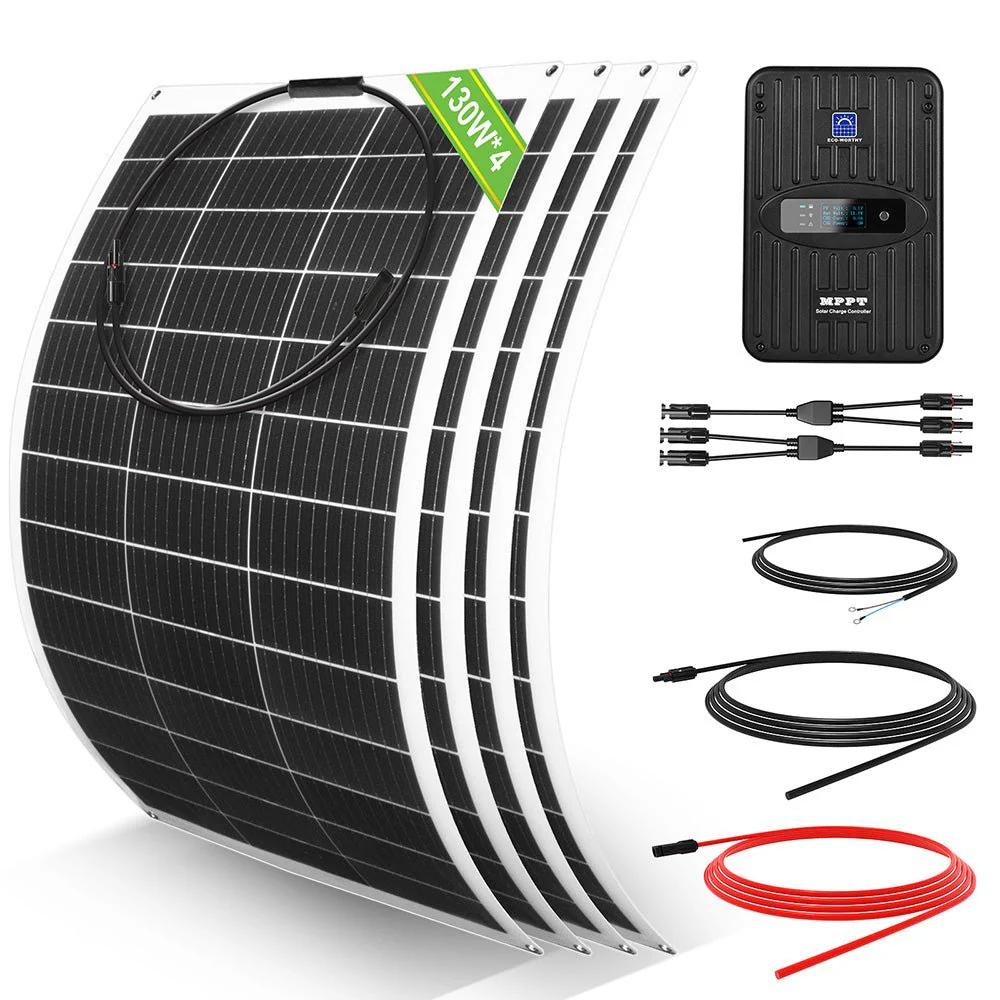

520W (4-Panel) 12V Solar Kit
4x 130W Flexible Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
3x Y MC4 Connector
1x 1.5M Tray Cable

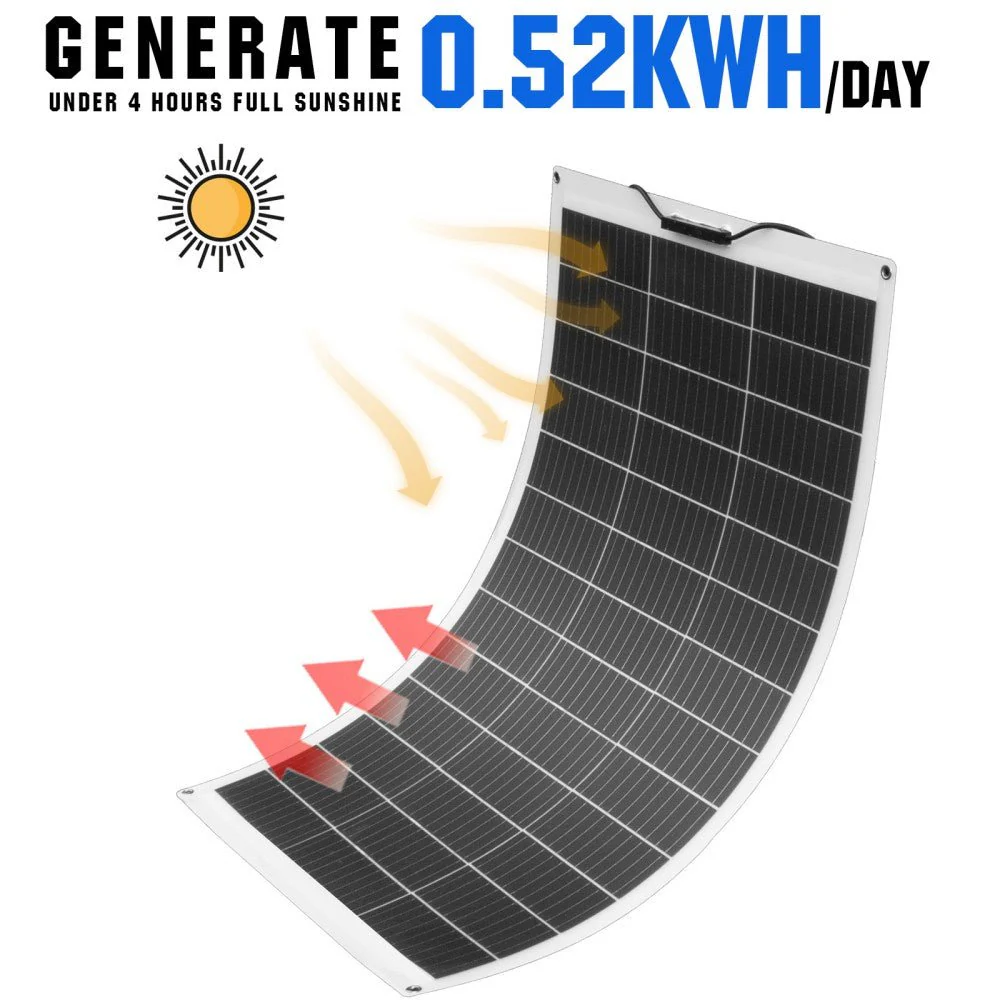

130W 12V Flexible Mono Solar Panel
| Rated Power: 130W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 21.10V | Open Circuit Voltage(Voc): 24.50V |
| Short circuit current: 6.50A | Maximum current: 6.16A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Length of extension cable: 90cm（2.95ft） | Size of extension cable: 4mm²（11AWG）/MC4 Connector |
| Weight: 4.40 lbs(2.0 kg) | Size: 960x690x2.5 mm (37.8 x 27.16"x 0.1 in) |

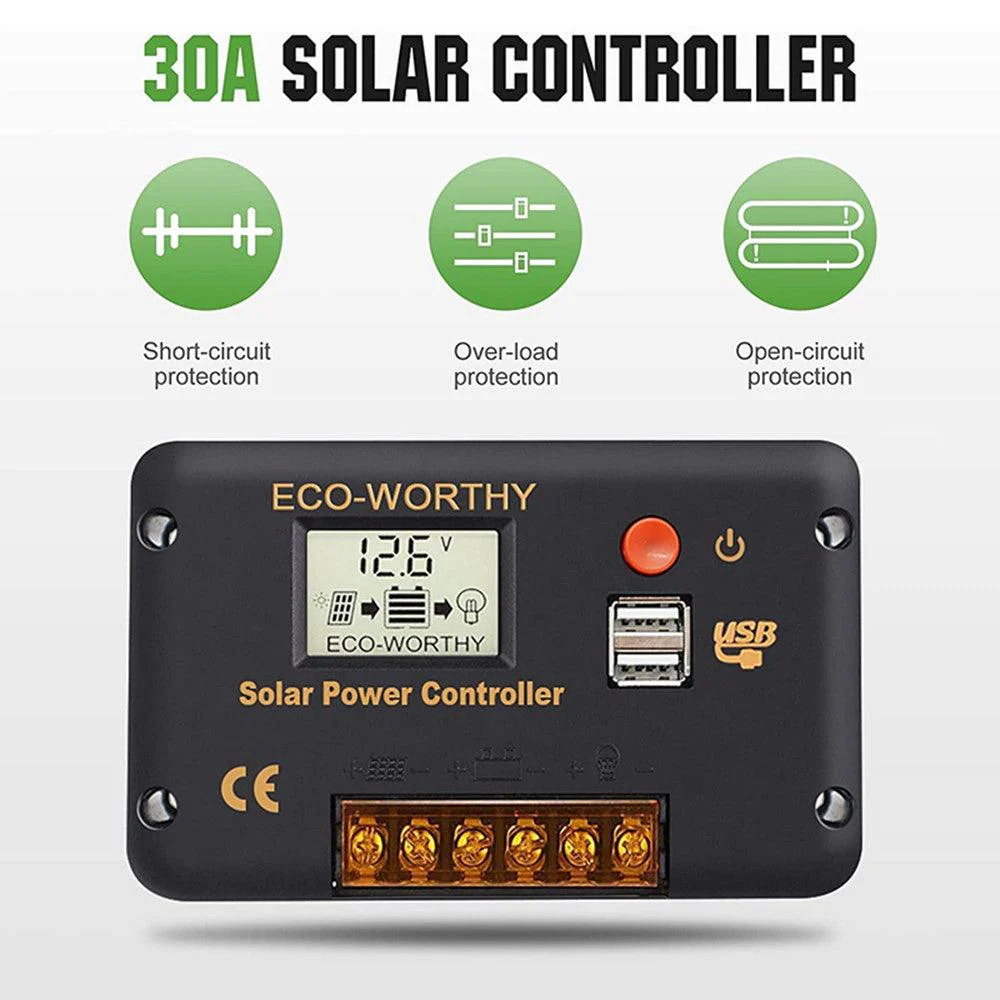

30A PWM Solar Charge Controller
| Battery voltage: 12V/24V | Charging mode: PWM |
| Max Charge current: 30A | Discharge current: 30A |
| Max.PV Open-Circuit Voltage: <50V | USB Output: 5V/2A |
| Working Temperature: -20℃~60℃ | Weight: 150g |
| Size: 138*82*30mm |

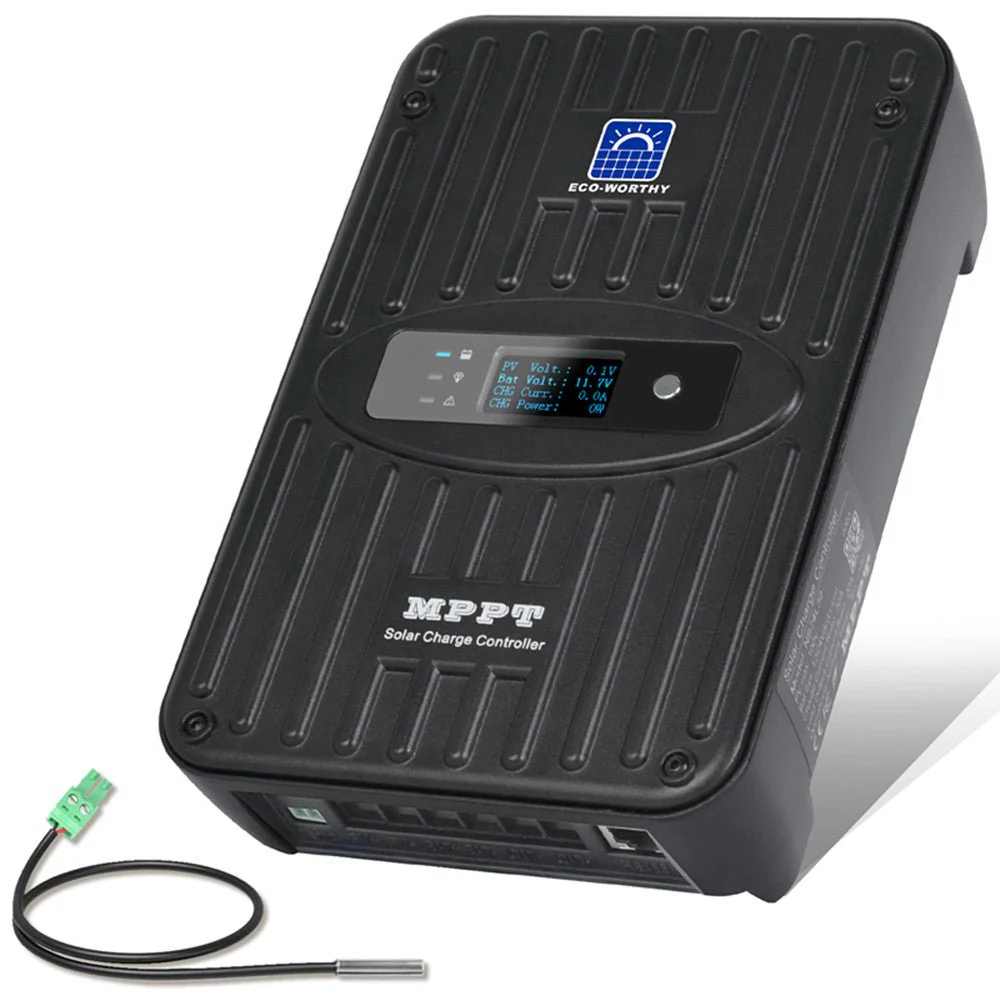

40A MPPT Solar Charge Controller
| Battery voltage：12V/24V | Max Solar Input Power：560/1120W |
| Charging mode：MPPT | Rated Load Current：20A |
| Charge Efficiency (Peak)：97% | Self-Consumption：1~2W |
| Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded | Size：220*148*64mm/8.7*5.8*2.5inch |
| Max Charge current：40A | Weight：1.5KG |
| Max.PV Open-Circuit Voltage：<100V |

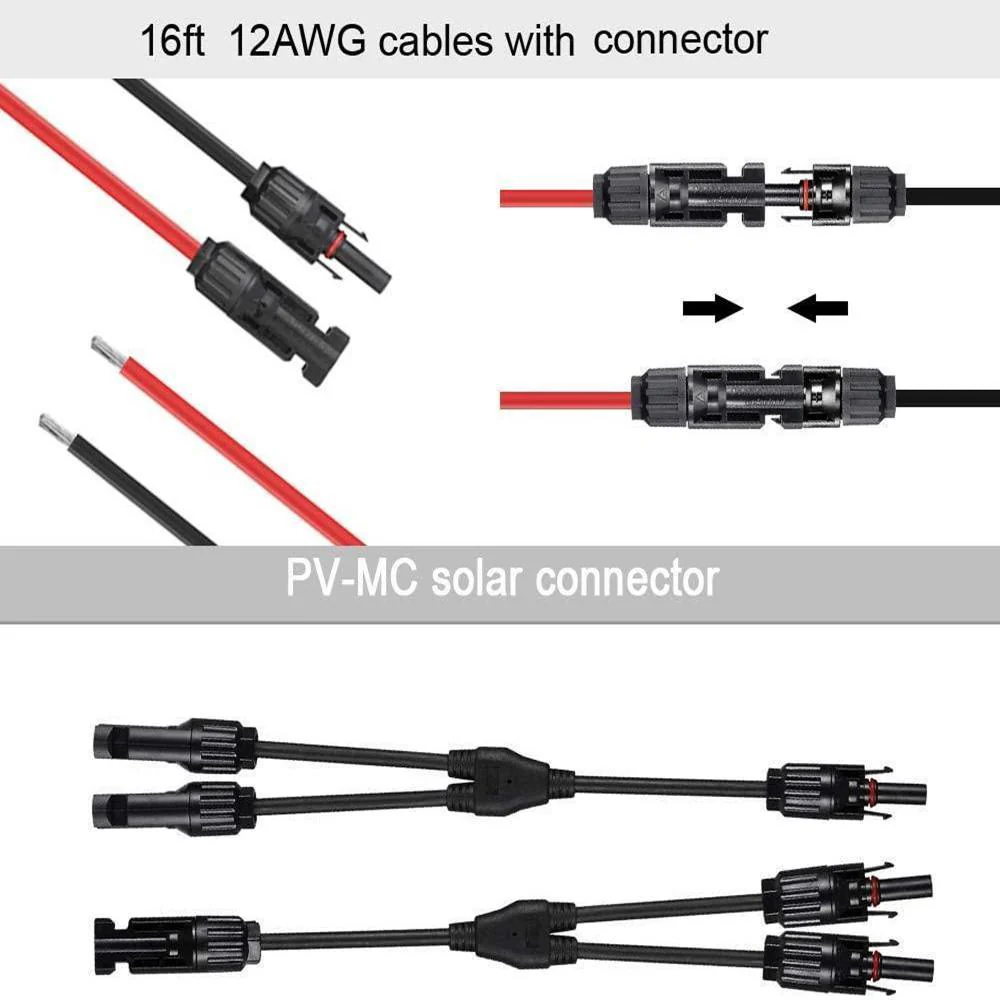

16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Y Branch Cable MC4 Connectors
| Compatible with MC4 solar connector. | Easy installation for 2 solar panels connected in parallel. |
