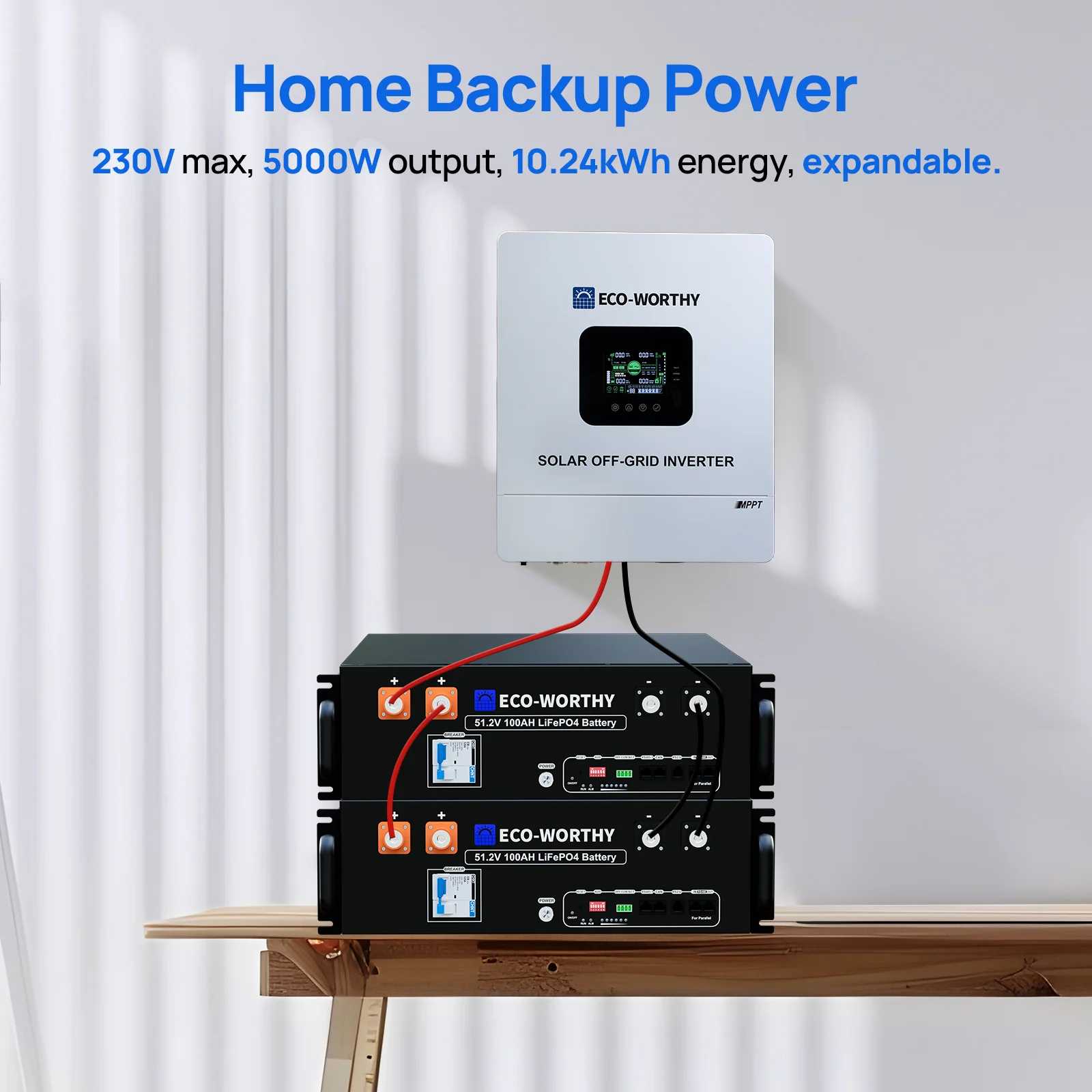

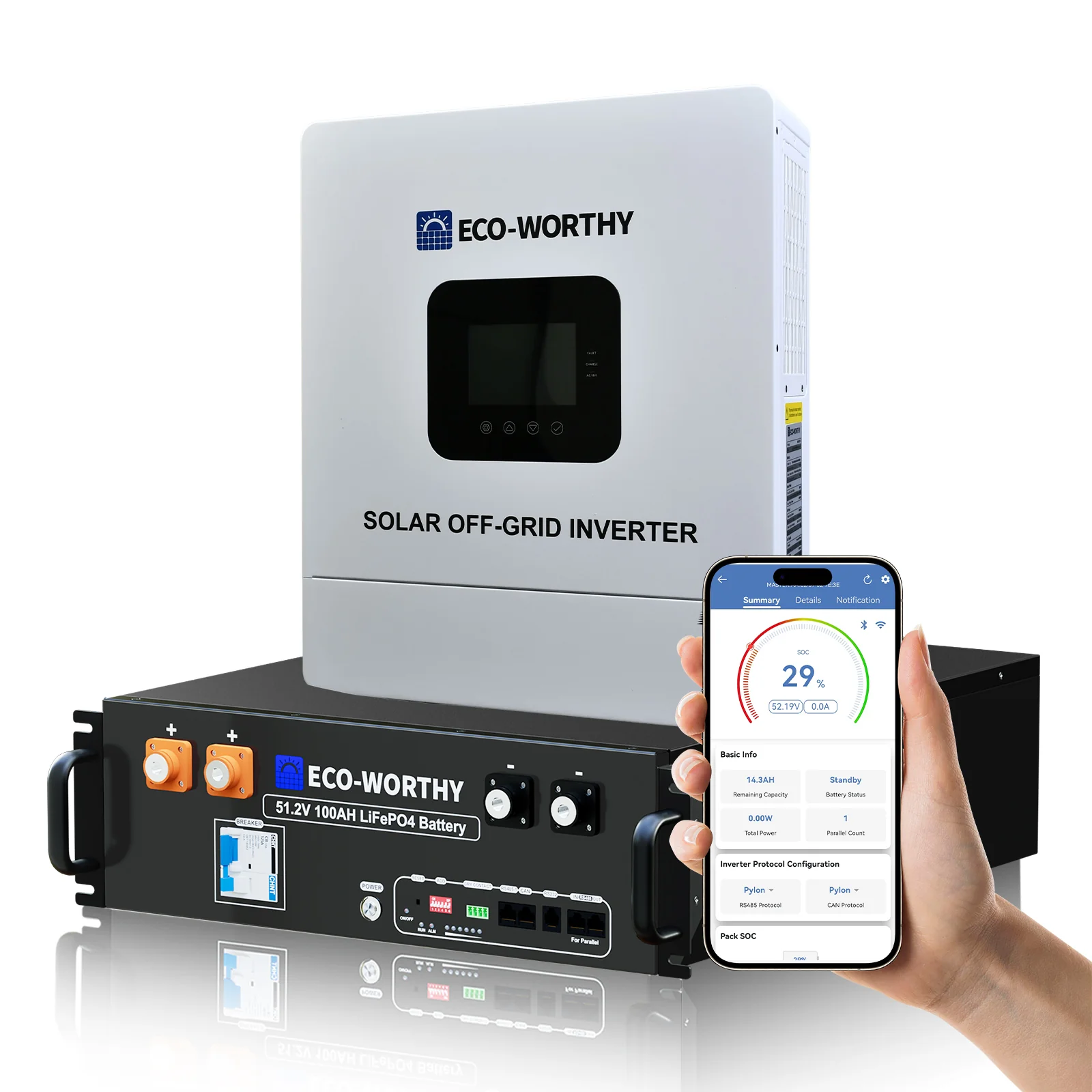

ECO-WORTHY Home Backup Power With 48V 100Ah LiFePO4 And 5000W 48V AIO Off-Grid Inverter

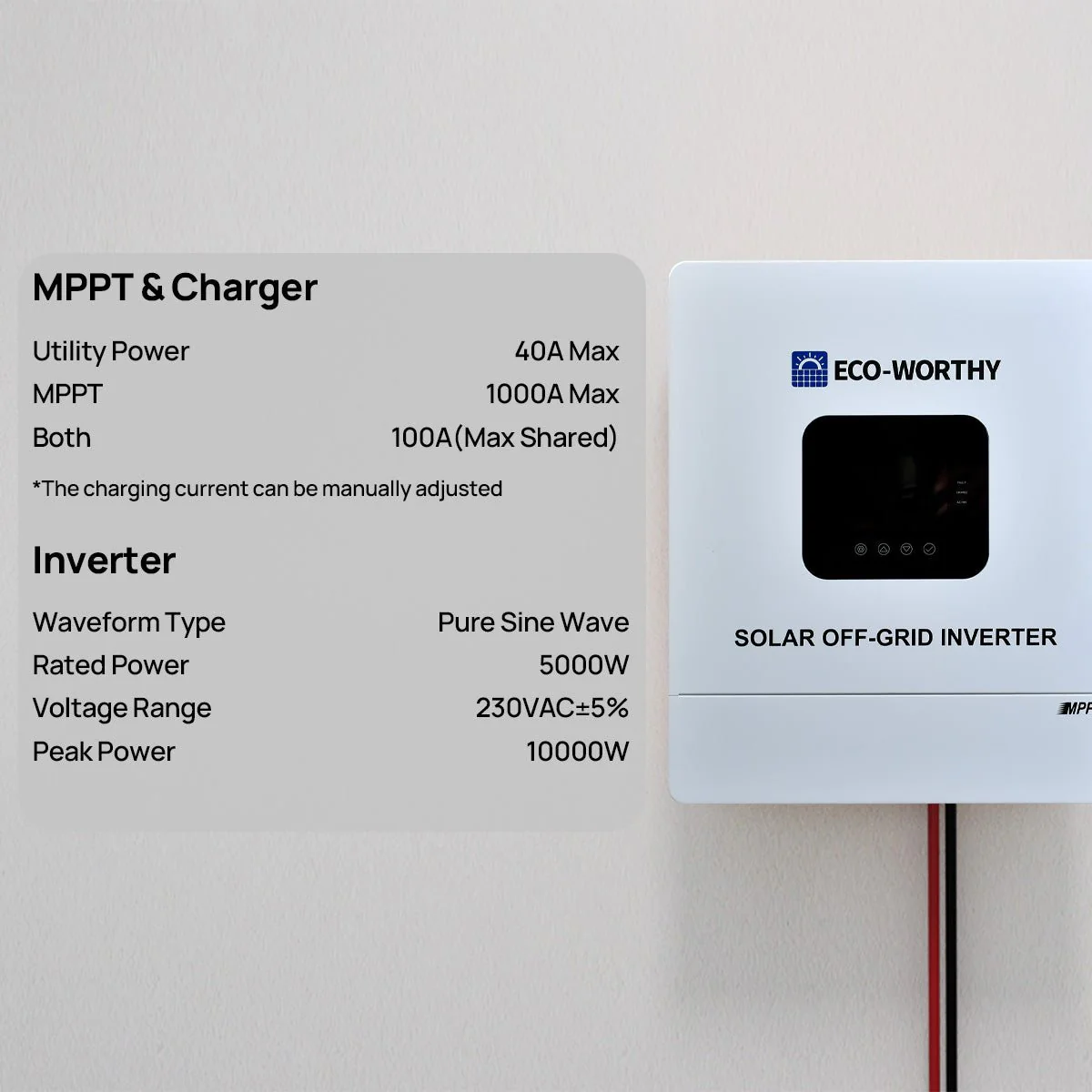

5000W 48V All-in-one Inverter
| AC Input Mode | ć |
| Rated Input Voltage: 220/230VAC | Input Voltage Range:Ā
(170Vac~280Vac) Ā±2%ļ¼ (90Vac-280Vac) Ā±2%
|
| Frequency:Ā
50Hz/ 60Hz (Auto detection)
|
Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A |
Conversion time (bypassļ¼10ms (typical)
|
| Invert Mode | ć |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 230VAC | Peak Power: 10000W |
|
Output frequency range
: 50Hz Ā± 0.3Hz, 60Hz Ā± 0.3Hz |
Maximum Efficiency: >92%
|
|
Rated battery i: 4HP
|
Rated battery input: 48v
|
| AC Charging Mode | ć |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40 ā58Vdc |
Short circuit protection: Circuit breaker and blown fuse
|
| PV Charging Mode | ć |
| Max Input Power: 5500W | PV Charging Current Rangeļ¼0-100A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-500VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
|
Maximum PV input current: 22A
|
Charging Short Circuit Protection: Blown fuse |
|
Max charger current(canĀ be set):100A
|
|
|
Certified specifications
|
|
| Weight: 12kg (26.46lb) |
EMC certification level: EN61000
|
|
Operating temperature
range: -10Ā°C to 55Ā°C (14Ā°F ~131Ā°F)
|
Storage temperature
range:Ā -25Ā°C ~ 60Ā°C (-13Ā°F ~140Ā°F )
|
|
Humidity range:Ā 5% to 95%
|
Noise: ā¤60dB
|
|
Heat dissipation:Ā
Forced air cooling, variable speed of fan
|
Communication interface:Ā
USB / RS485 (WiFi/GPRS) / Dry contact control
|
|
Dimension (L*W*D):Ā
446.9*350*133mm (1.47*1.15*0.44ft)
|
Ā
Ā

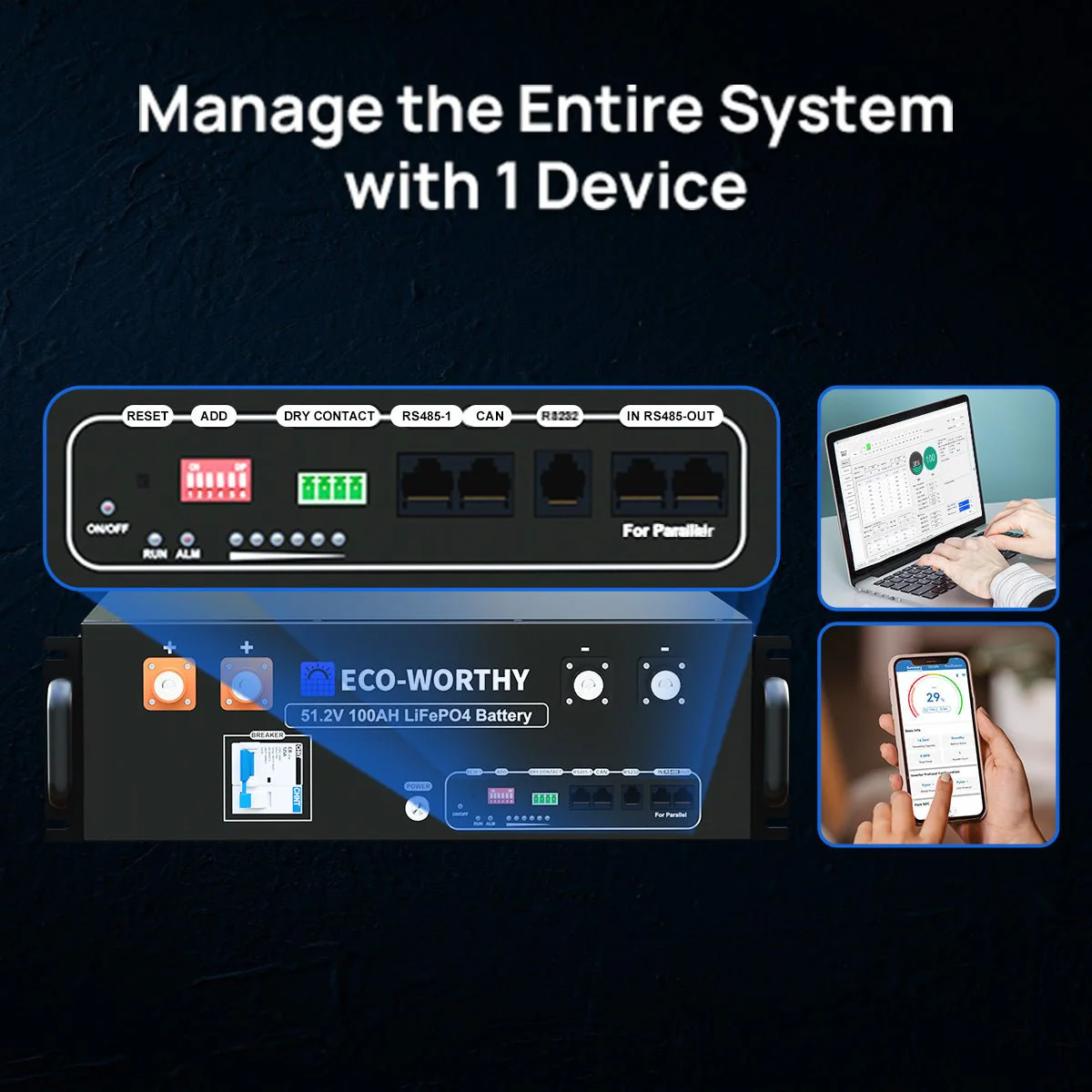

48V(51.2V) 100Ah Server Rack Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55ā |
| Disharge Temperature Range:ļ¹£20ļ¼55ā | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 95 lbs | Each battery comes with a pair of battery parallel cables |
| Certification Testļ¼IEC62619 |
Select Style
From $564.91
Original: $1,883.04
-70%ECO-WORTHY Home Backup Power With 48V 100Ah LiFePO4 And 5000W 48V AIO Off-Grid Inverterā
$1,883.04
$564.91Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
5000W 48V All-in-one Inverter
| AC Input Mode | ć |
| Rated Input Voltage: 220/230VAC | Input Voltage Range:Ā
(170Vac~280Vac) Ā±2%ļ¼ (90Vac-280Vac) Ā±2%
|
| Frequency:Ā
50Hz/ 60Hz (Auto detection)
|
Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A |
Conversion time (bypassļ¼10ms (typical)
|
| Invert Mode | ć |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 230VAC | Peak Power: 10000W |
|
Output frequency range
: 50Hz Ā± 0.3Hz, 60Hz Ā± 0.3Hz |
Maximum Efficiency: >92%
|
|
Rated battery i: 4HP
|
Rated battery input: 48v
|
| AC Charging Mode | ć |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40 ā58Vdc |
Short circuit protection: Circuit breaker and blown fuse
|
| PV Charging Mode | ć |
| Max Input Power: 5500W | PV Charging Current Rangeļ¼0-100A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-500VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
|
Maximum PV input current: 22A
|
Charging Short Circuit Protection: Blown fuse |
|
Max charger current(canĀ be set):100A
|
|
|
Certified specifications
|
|
| Weight: 12kg (26.46lb) |
EMC certification level: EN61000
|
|
Operating temperature
range: -10Ā°C to 55Ā°C (14Ā°F ~131Ā°F)
|
Storage temperature
range:Ā -25Ā°C ~ 60Ā°C (-13Ā°F ~140Ā°F )
|
|
Humidity range:Ā 5% to 95%
|
Noise: ā¤60dB
|
|
Heat dissipation:Ā
Forced air cooling, variable speed of fan
|
Communication interface:Ā
USB / RS485 (WiFi/GPRS) / Dry contact control
|
|
Dimension (L*W*D):Ā
446.9*350*133mm (1.47*1.15*0.44ft)
|
Ā
Ā
48V(51.2V) 100Ah Server Rack Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55ā |
| Disharge Temperature Range:ļ¹£20ļ¼55ā | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 95 lbs | Each battery comes with a pair of battery parallel cables |
| Certification Testļ¼IEC62619 |
