Battery Weight: 293.2lb/133kg
🚚 Free Worldwide Shipping on All Orders!Shop Now

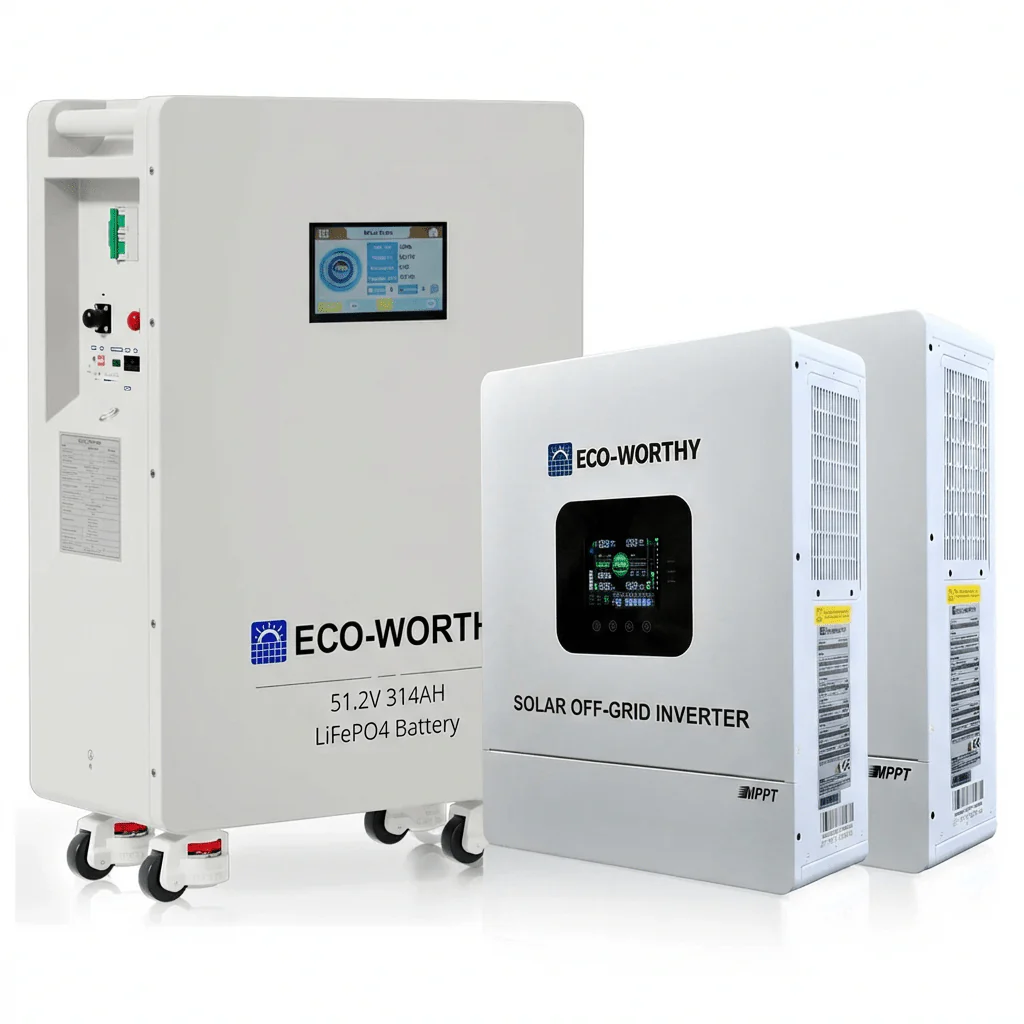

ECO-WORTHY 48V 314Ah Lithium Battery Home Backup Power 16.08KWh and 5kW 48V Off Grid Inverter

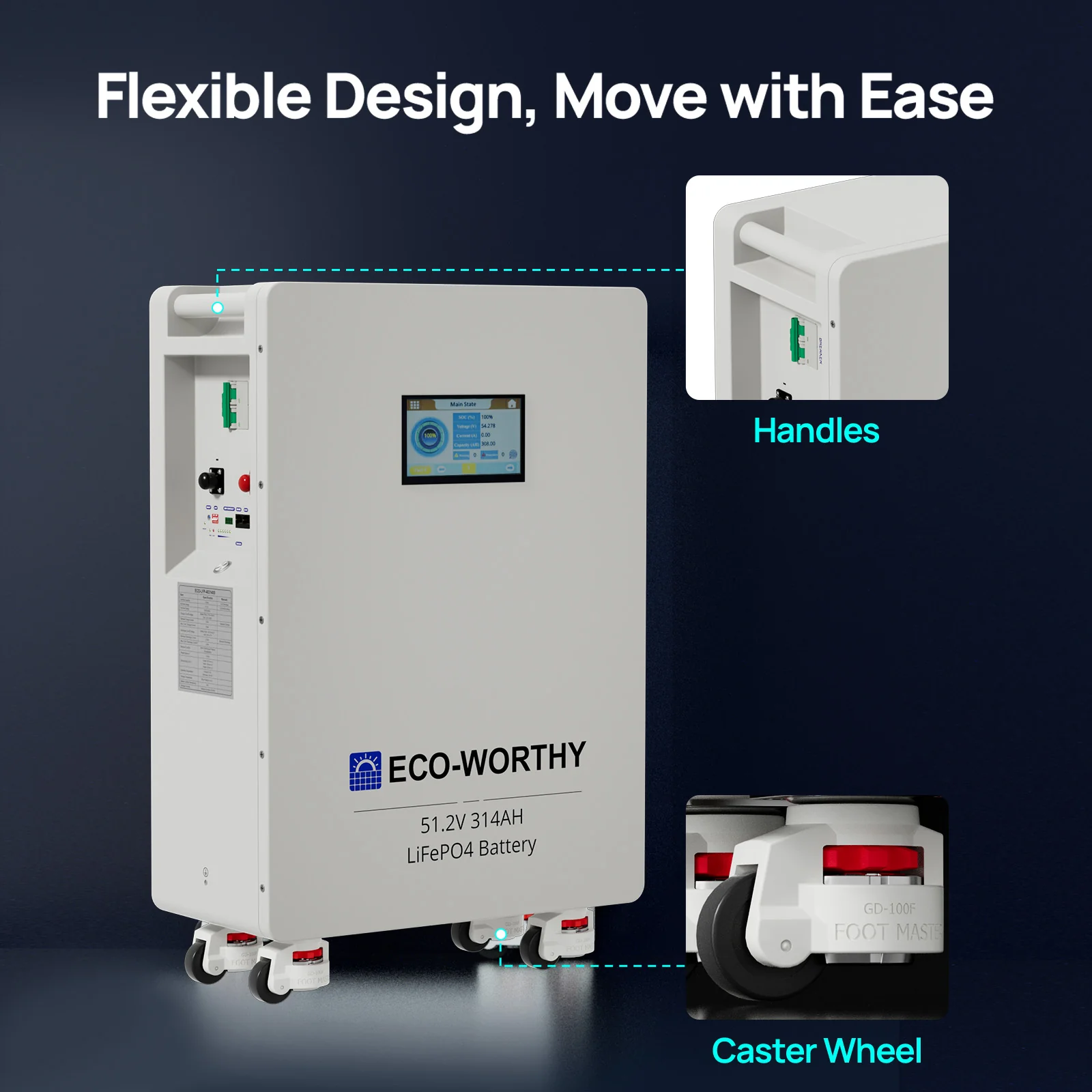

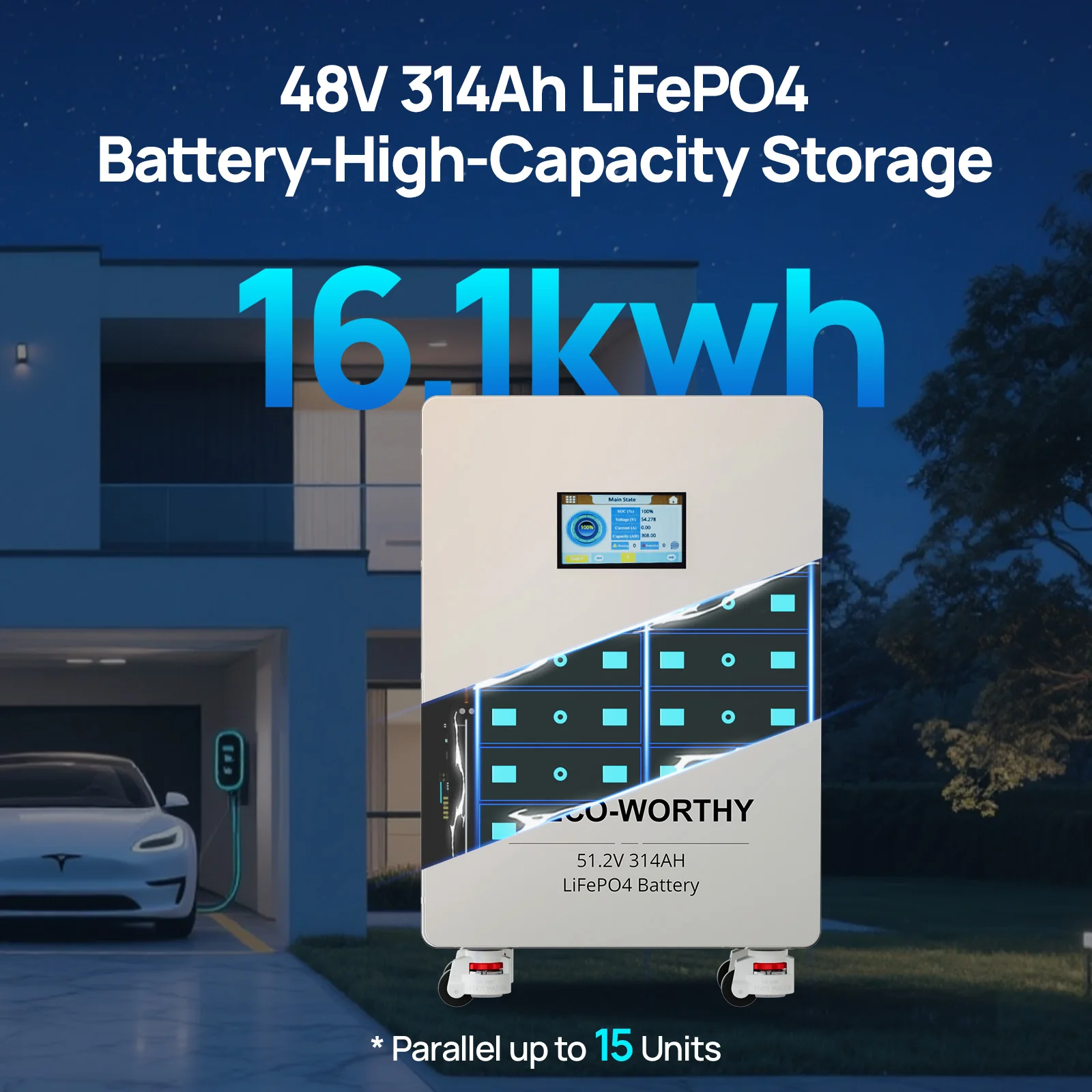

48V 314Ah Lithium Battery
| Battery Capacity: 314Ah | Battery Power: 16.08kWh |
| Rated Voltage: 51.2V | Voltage Range: 40~58.4V |
| Maximum Charge/ Discharge Current: 200A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
|
|
Battery Size: 32.56*20.47*9.92in/80.7*52*25.2cm |
| Circuit Breaker:2*125A(250A) |
Max. parallel number:15pcs
|
| BMS Brand：PACE BMS |

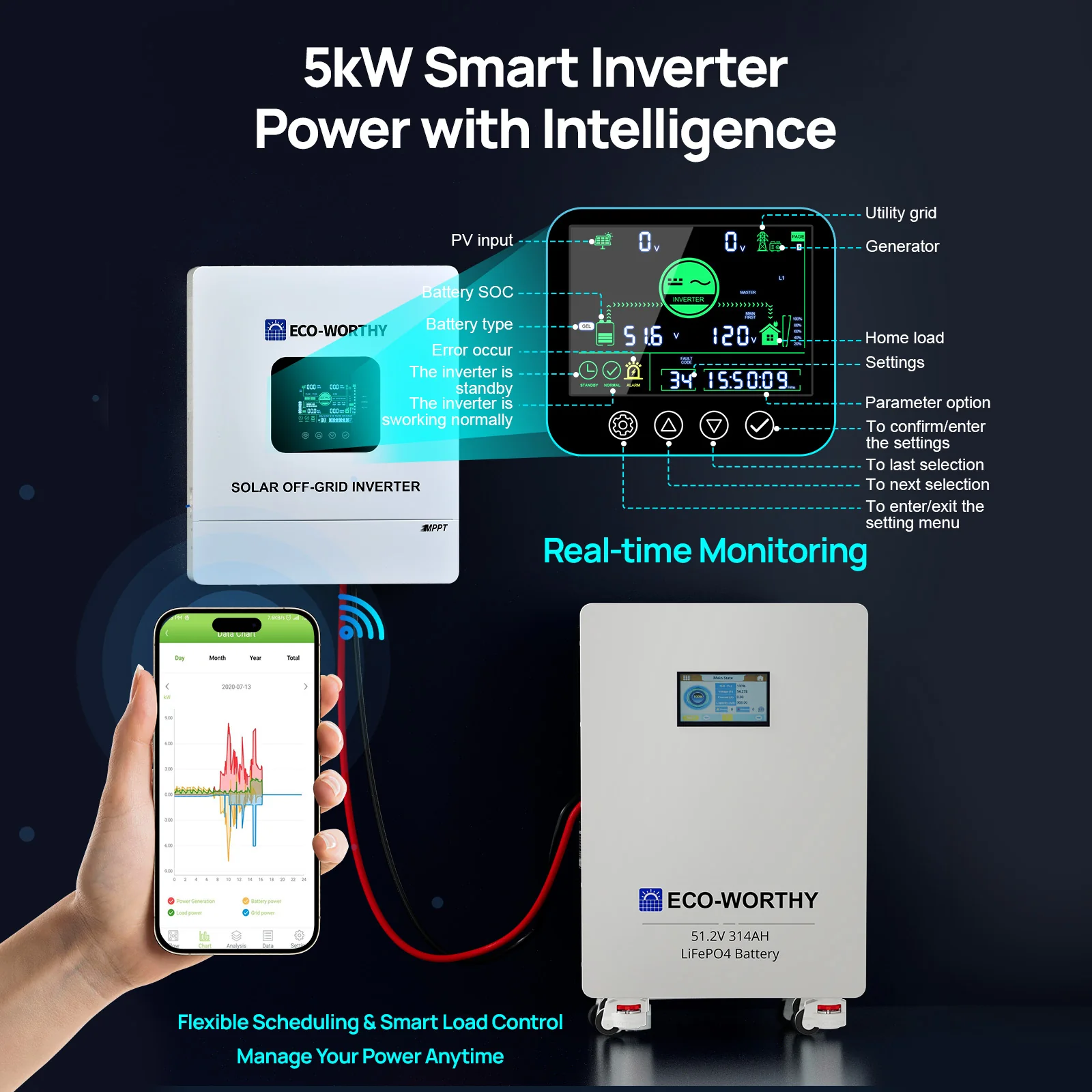

5000W 48V Pure Sine Wave Power Inverter
| Models: ECO3000W(SR) | AC Rated input voltage: 220/230Vac |
| AC Frequency: 50Hz/ 60Hz (Auto detection) | AC Overload/short circuit protection: 10ms (typical) |
| AC Maximum Efficiency: Available | AC Maximum bypass overload current: 30A |
| Output voltage waveform: Pure sine wave | Rated output power (W): 3000w |
| Rated output voltage (Vac): 230Vac | Output voltage error: ±5% |
| Output frequency range (Hz): 50Hz ± 0.3Hz / 60Hz ± 0.3Hz | Efficiency: ＞92% |
| Size (L*W*D): 378mm*280mm*103mm | Weight (kg): 6.2 |
| AC Input Mode | |
| Rated Input Voltage: 220/230VAC | Input Voltage Range:
(170Vac~280Vac) ±2%， (90Vac-280Vac) ±2%
|
| Frequency:
50Hz/ 60Hz (Auto detection)
|
Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A |
Conversion time (bypass：10ms (typical)
|
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 230VAC | Peak Power: 10000W |
|
Output frequency range
: 50Hz ± 0.3Hz, 60Hz ± 0.3Hz |
Maximum Efficiency: >92%
|
|
Rated battery i: 4HP
|
Rated battery input: 48v
|
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40 ‒58Vdc |
Short circuit protection: Circuit breaker and blown fuse
|
| PV Charging Mode | |
| Max Input Power: 5500W | PV Charging Current Range：0-100A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-500VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
|
Maximum PV input current: 22A
|
Charging Short Circuit Protection: Blown fuse |
|
Max charger current(can be set):100A
|
|
|
Certified specifications
|
|
|
Certification: CE(IEC62109 - 1)/FCC/UKCA
|
EMC certification level: EN61000
|
|
Operating temperature
range: -10°C to 55°C (14°F ~131°F)
|
Storage temperature
range: -25°C ~ 60°C (-13°F ~140°F )
|
|
Humidity range: 5% to 95%
|
Noise: ≤60dB
|
|
Heat dissipation:
Forced air cooling, variable speed of fan
|
Communication interface:
USB / RS485 (WiFi/GPRS) / Dry contact control
|
|
Dimension (L*W*D):
446.9*350*133mm (1.47*1.15*0.44ft)
|
Weight: 12kg (26.46lb)
|
Package included:
1 x 5kW 48V All-in-one Inverter
1 x 51.2v 314ah battery
1 x 51.2v 314ah battery manual
1 x Battery to Inverter communication cable(1500mm)
1 Group Of Wall-mounted Bracket
1 Pair Of Battery to Busbarcable(2AWG 1500mm Black)
Select Style
From $940.18
Original: $3,133.93
-70%ECO-WORTHY 48V 314Ah Lithium Battery Home Backup Power 16.08KWh and 5kW 48V Off Grid Inverter—
$3,133.93
$940.18Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
48V 314Ah Lithium Battery
| Battery Capacity: 314Ah | Battery Power: 16.08kWh |
| Rated Voltage: 51.2V | Voltage Range: 40~58.4V |
| Maximum Charge/ Discharge Current: 200A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
|
Battery Weight: 293.2lb/133kg |
Battery Size: 32.56*20.47*9.92in/80.7*52*25.2cm |
| Circuit Breaker:2*125A(250A) |
Max. parallel number:15pcs
|
| BMS Brand：PACE BMS |
5000W 48V Pure Sine Wave Power Inverter
| Models: ECO3000W(SR) | AC Rated input voltage: 220/230Vac |
| AC Frequency: 50Hz/ 60Hz (Auto detection) | AC Overload/short circuit protection: 10ms (typical) |
| AC Maximum Efficiency: Available | AC Maximum bypass overload current: 30A |
| Output voltage waveform: Pure sine wave | Rated output power (W): 3000w |
| Rated output voltage (Vac): 230Vac | Output voltage error: ±5% |
| Output frequency range (Hz): 50Hz ± 0.3Hz / 60Hz ± 0.3Hz | Efficiency: ＞92% |
| Size (L*W*D): 378mm*280mm*103mm | Weight (kg): 6.2 |
| AC Input Mode | |
| Rated Input Voltage: 220/230VAC | Input Voltage Range:
(170Vac~280Vac) ±2%， (90Vac-280Vac) ±2%
|
| Frequency:
50Hz/ 60Hz (Auto detection)
|
Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A |
Conversion time (bypass：10ms (typical)
|
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 230VAC | Peak Power: 10000W |
|
Output frequency range
: 50Hz ± 0.3Hz, 60Hz ± 0.3Hz |
Maximum Efficiency: >92%
|
|
Rated battery i: 4HP
|
Rated battery input: 48v
|
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40 ‒58Vdc |
Short circuit protection: Circuit breaker and blown fuse
|
| PV Charging Mode | |
| Max Input Power: 5500W | PV Charging Current Range：0-100A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-500VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
|
Maximum PV input current: 22A
|
Charging Short Circuit Protection: Blown fuse |
|
Max charger current(can be set):100A
|
|
|
Certified specifications
|
|
|
Certification: CE(IEC62109 - 1)/FCC/UKCA
|
EMC certification level: EN61000
|
|
Operating temperature
range: -10°C to 55°C (14°F ~131°F)
|
Storage temperature
range: -25°C ~ 60°C (-13°F ~140°F )
|
|
Humidity range: 5% to 95%
|
Noise: ≤60dB
|
|
Heat dissipation:
Forced air cooling, variable speed of fan
|
Communication interface:
USB / RS485 (WiFi/GPRS) / Dry contact control
|
|
Dimension (L*W*D):
446.9*350*133mm (1.47*1.15*0.44ft)
|
Weight: 12kg (26.46lb)
|
Package included:
1 x 5kW 48V All-in-one Inverter
1 x 51.2v 314ah battery
1 x 51.2v 314ah battery manual
1 x Battery to Inverter communication cable(1500mm)
1 Group Of Wall-mounted Bracket
1 Pair Of Battery to Busbarcable(2AWG 1500mm Black)
