48V 5000W Solar All-in-one Inverter MPPT Controller & Pure Sine Wave for Off-Grid & Backup
| AC Input Mode | |
| Rated Input Voltage: 220/230VAC | Input Voltage Range:
(170Vac~280Vac) ±2%， (90Vac-280Vac) ±2%
|
| Frequency:
50Hz/ 60Hz (Auto detection)
|
Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A |
Conversion time (bypass：10ms (typical)
|
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 230VAC | Peak Power: 10000W |
|
Output frequency range
: 50Hz ± 0.3Hz, 60Hz ± 0.3Hz |
Maximum Efficiency: >92%
|
|
Rated battery i: 4HP
|
Rated battery input: 48v
|
| AC Charging Mode | |

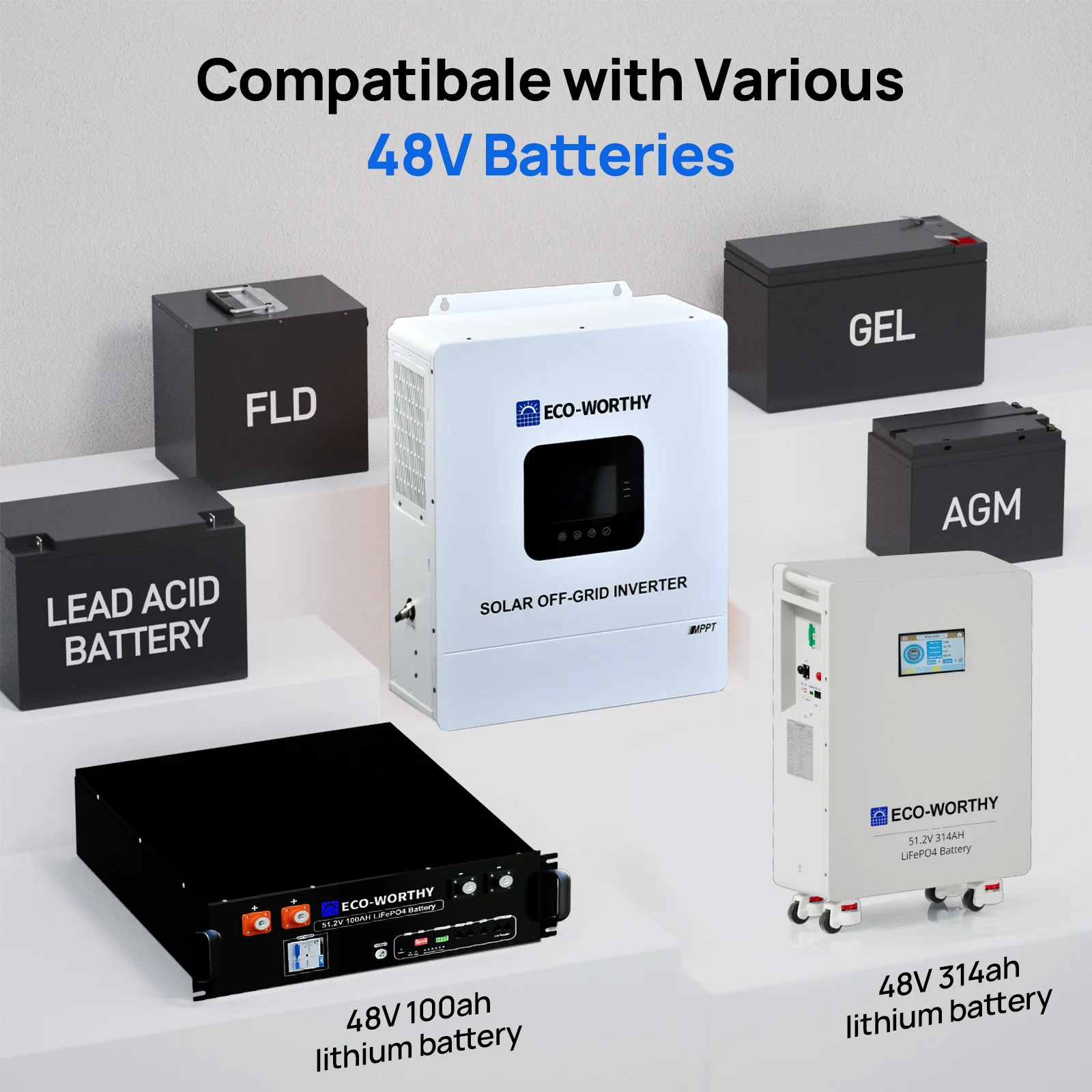

| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40 ‒58Vdc |
Short circuit protection: Circuit breaker and blown fuse
|
| PV Charging Mode | |
| Max Input Power: 5500W | PV Charging Current Range：0-100A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-500VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
|
Maximum PV input current: 22A
|
Charging Short Circuit Protection: Blown fuse |
|
Max charger current(can be set):100A
|
|
|
Certified specifications
|
|
| Weight: 12kg (26.46lb) |
EMC certification level: EN61000
|
|
Operating temperature
range: -10°C to 55°C (14°F ~131°F)
|
Storage temperature
range: -25°C ~ 60°C (-13°F ~140°F )
|
|
Humidity range: 5% to 95%
|
Noise: ≤60dB
|
|
Heat dissipation:
Forced air cooling, variable speed of fan
|
Communication interface:

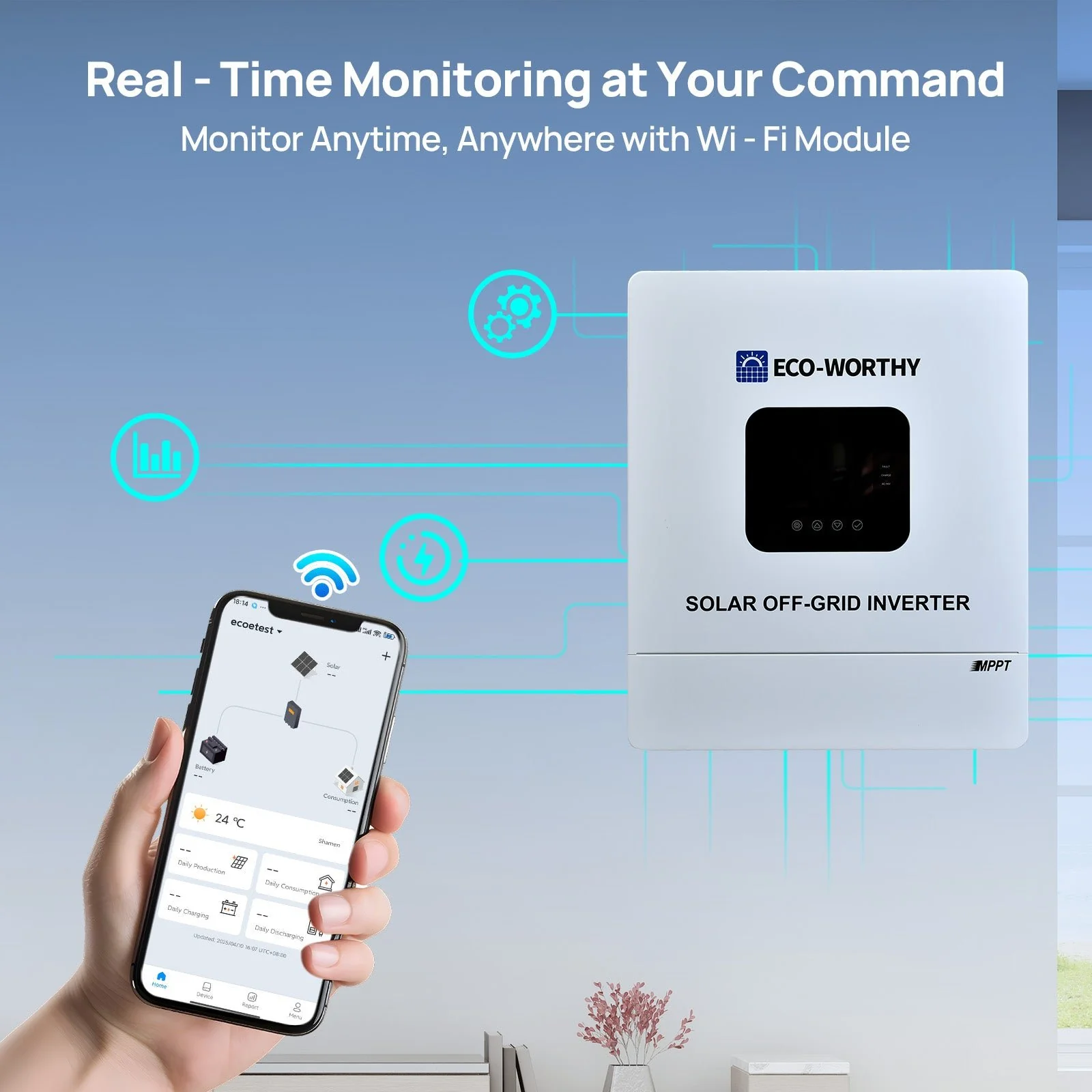

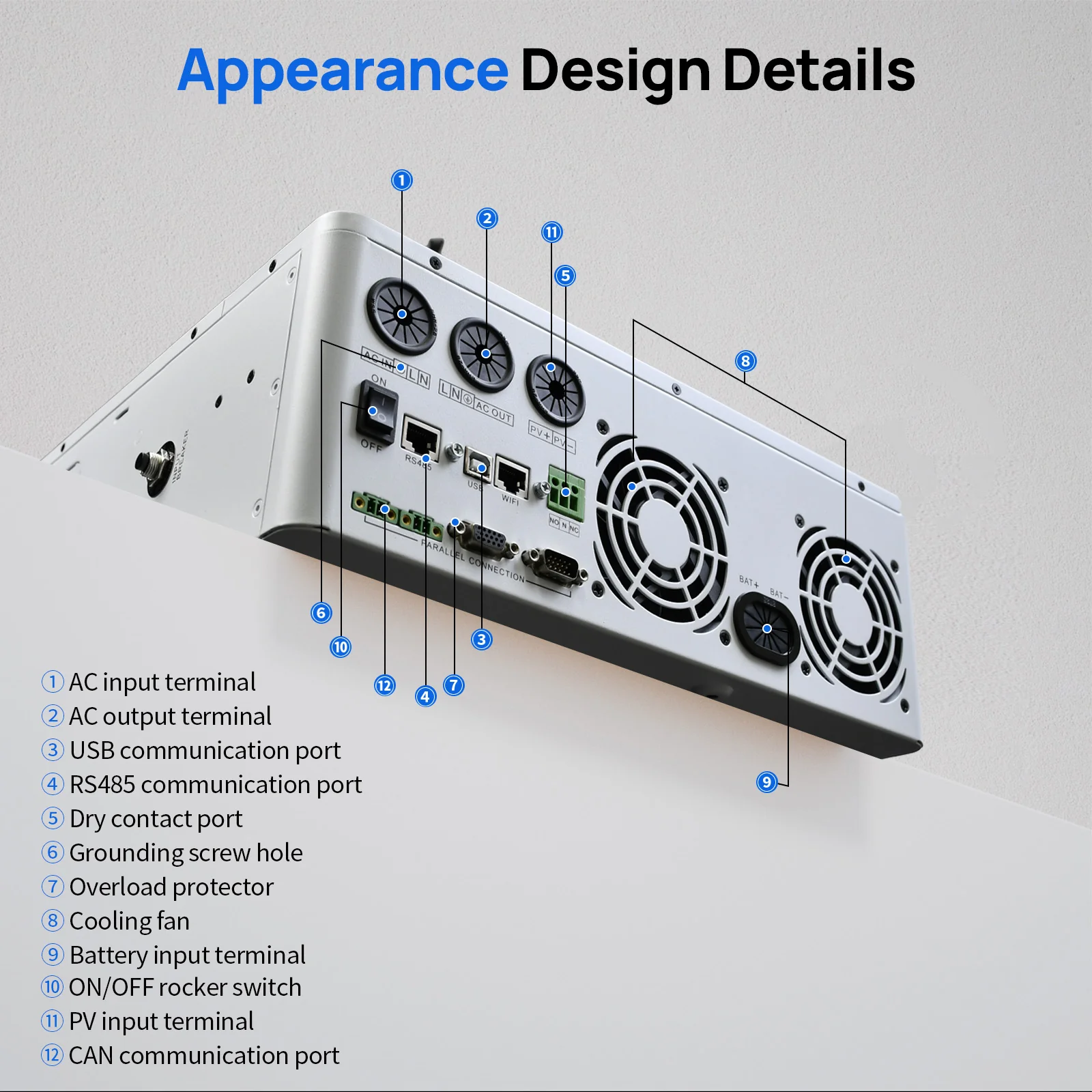

USB / RS485 (WiFi/GPRS) / Dry contact control
|
|

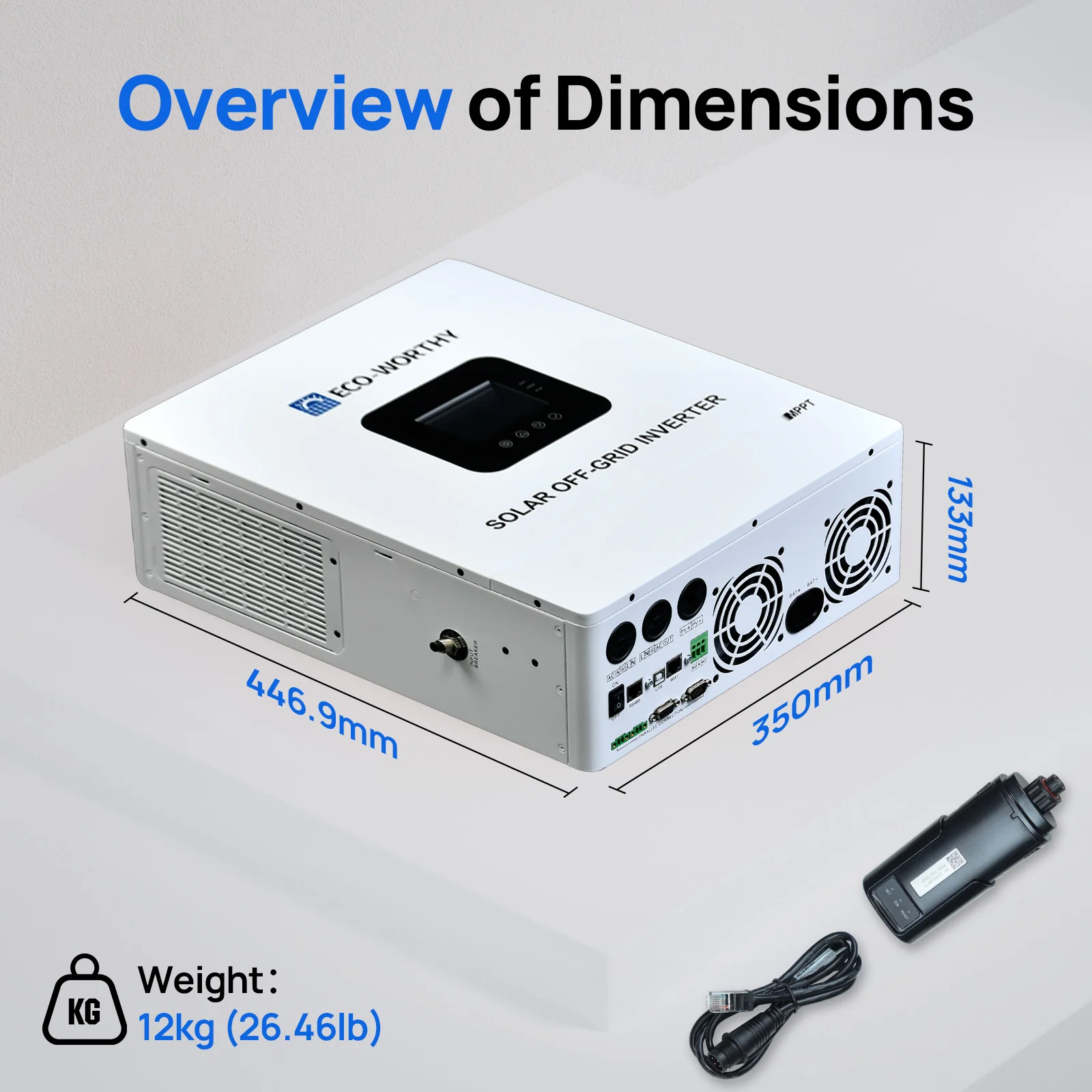

Dimension (L*W*D):
446.9*350*133mm (1.47*1.15*0.44ft)
|
$254.21
Original: $847.36
-70%48V 5000W Solar All-in-one Inverter MPPT Controller & Pure Sine Wave for Off-Grid & Backup—
$847.36
$254.21Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| AC Input Mode | |
| Rated Input Voltage: 220/230VAC | Input Voltage Range:
(170Vac~280Vac) ±2%， (90Vac-280Vac) ±2%
|
| Frequency:
50Hz/ 60Hz (Auto detection)
|
Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A |
Conversion time (bypass：10ms (typical)
|
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 230VAC | Peak Power: 10000W |
|
Output frequency range
: 50Hz ± 0.3Hz, 60Hz ± 0.3Hz |
Maximum Efficiency: >92%
|
|
Rated battery i: 4HP
|
Rated battery input: 48v
|
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40 ‒58Vdc |
Short circuit protection: Circuit breaker and blown fuse
|
| PV Charging Mode | |
| Max Input Power: 5500W | PV Charging Current Range：0-100A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-500VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
|
Maximum PV input current: 22A
|
Charging Short Circuit Protection: Blown fuse |
|
Max charger current(can be set):100A
|
|
|
Certified specifications
|
|
| Weight: 12kg (26.46lb) |
EMC certification level: EN61000
|
|
Operating temperature
range: -10°C to 55°C (14°F ~131°F)
|
Storage temperature
range: -25°C ~ 60°C (-13°F ~140°F )
|
|
Humidity range: 5% to 95%
|
Noise: ≤60dB
|
|
Heat dissipation:
Forced air cooling, variable speed of fan
|
Communication interface:
USB / RS485 (WiFi/GPRS) / Dry contact control
|
|
Dimension (L*W*D):
446.9*350*133mm (1.47*1.15*0.44ft)
|
