48V 4680W (24x Bifacial 195W) Complete MPPT Off Grid Solar Kit

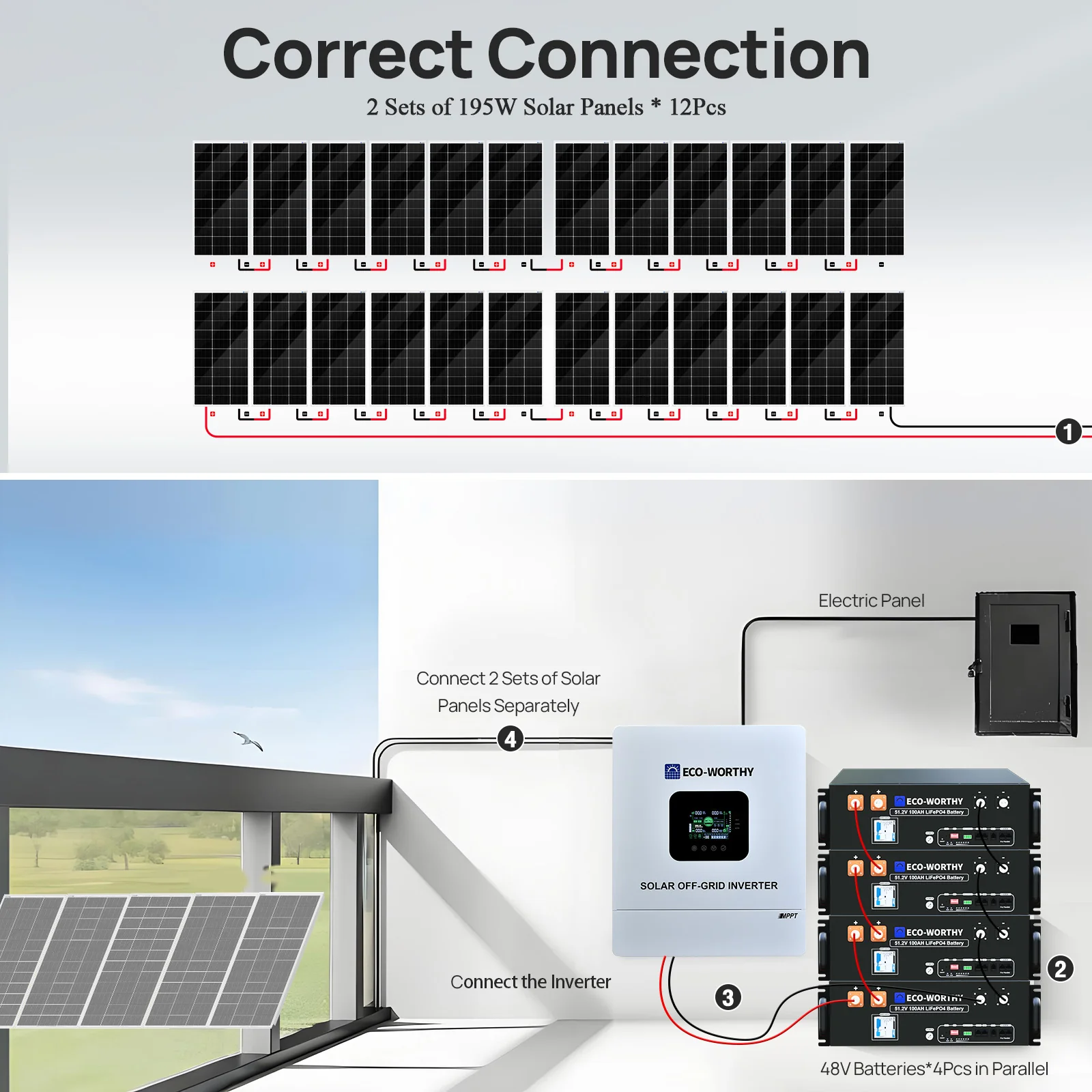

Package Includes
24x Bifacial 195W Mono Solar Panel
1x All-in-one Inverter(5000W 48V Inverter+80A MPPT Controller)
1x 5M 12AWG Extension Cable with MC4
4x 5M 12AWG Extension Cable with MC4-MC4
1x12AWG 1 Pair Solar MC4 Y Parallel Branch Connectors MFF&FMM Pair
24x Z Mounting Bracket>

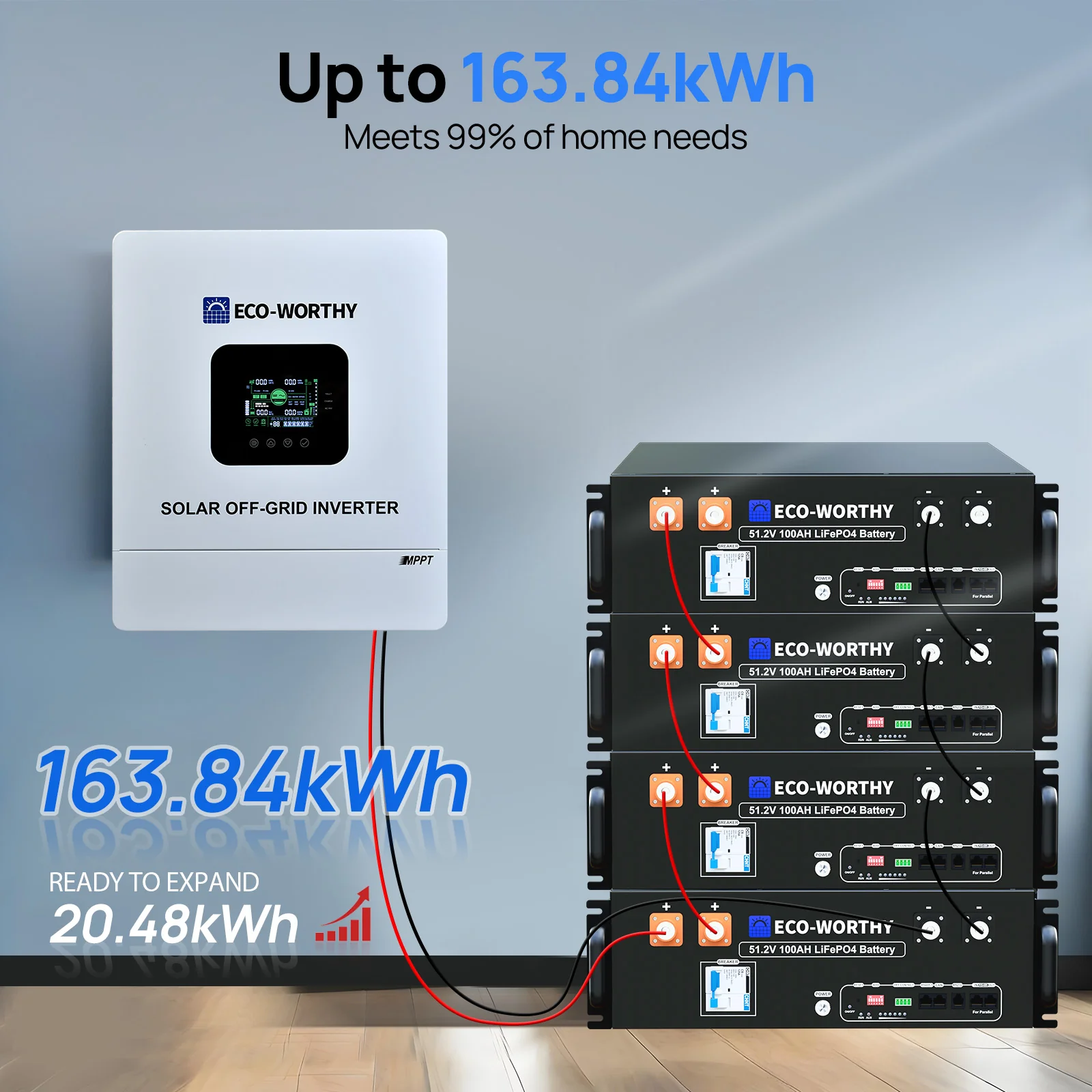

Battery Bank Options-
20.48kWh Lithium Battery Bank (optional)
with
4x 48V(51.2V) 100Ah Server Rack Battery
Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |
| Size: 52.6x26.38x1.38in (1335*670*35mm) |
5000W 48V All-in-one Inverter
| Rated Input Voltage: 220/230VAC | Maximum Efficiency: >92% |
| Input Voltage Range:
(170Vac~280Vac) ±2%， (90Vac-280Vac) ±2%
|
Output frequency range
: 50Hz ± 0.3Hz, 60Hz ± 0.3Hz |
| AC input Max AC Bypass Current:40A | AC input MAX AC Charge Current:60A |
| Rated Output Power: 5000W | PV Operating Voltage Range: 120-500VDC |
|
Dimension (L*W*D):
446.9*350*133mm (1.47*1.15*0.44ft)
|
Weight: 12kg (26.46lb) |

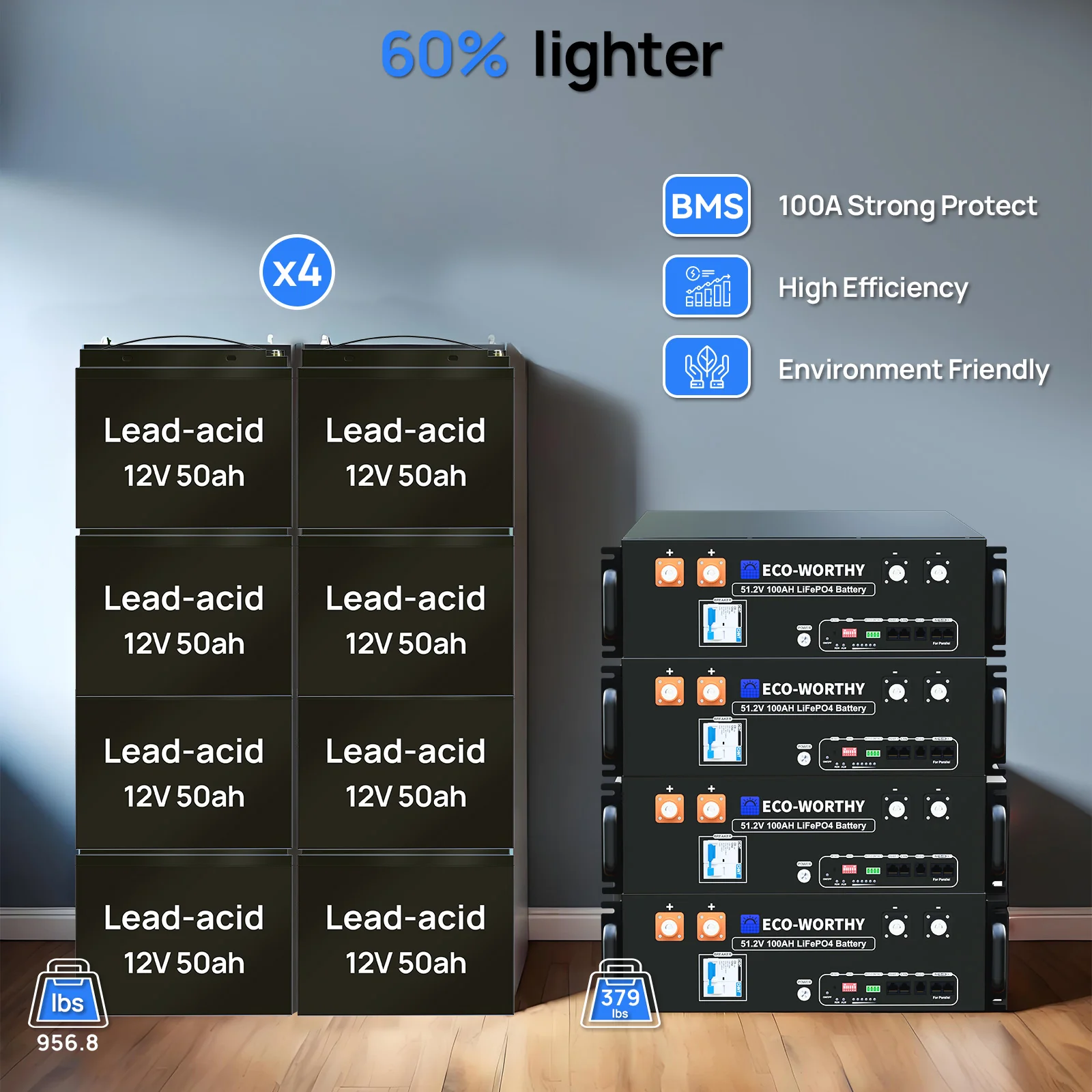

48V(51.2V) 100Ah Server Rack Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 95 lbs | Each battery comes with a pair of battery parallel cables |
| Certification Test：IEC62619 |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 12 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
