48V 2340W (12x Bifacial 195W) Complete MPPT Off Grid Solar Kit

Package Includes
12x Bifacial 195W Mono Solar Panel
1x 5000W 48V All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
2x 5M 12AWG Extension Cable with MC4-MC4
12x Z Mounting Bracket
Battery Bank Options-
10.24kWh Lithium Battery Bank (optional)
with
2x 48V(51.2V) 100Ah Server Rack Battery

Bifacial 195W Monocrystalline Solar Panel

Rated Power: 195W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V	Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A	Maximum current: 9.85A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (1335*670*35mm)

5000W 48V All-in-one Inverter

Rated Input Voltage: 220/230VAC	Maximum Efficiency: >92%
Input Voltage Range:  (170Vac~280Vac) ±2%， (90Vac-280Vac) ±2%	Output frequency range : 50Hz ± 0.3Hz, 60Hz ± 0.3Hz
AC input Max AC Bypass Current:40A	AC input MAX AC Charge Current:60A
Rated Output Power: 5000W	PV Operating Voltage Range: 120-500VDC
Dimension (L*W*D):  446.9*350*133mm (1.47*1.15*0.44ft)	Weight: 12kg (26.46lb)

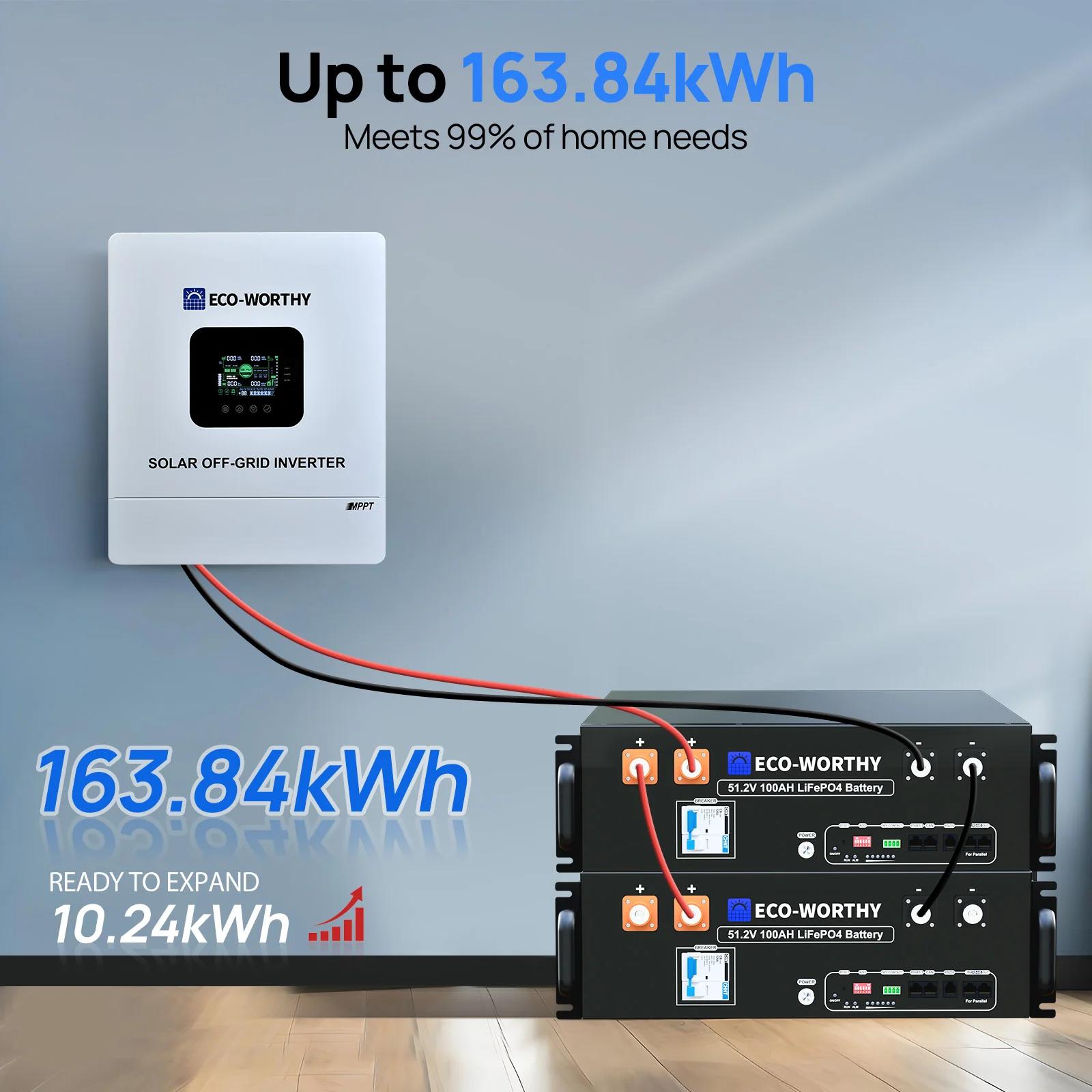

48V(51.2V) 100Ah Server Rack Battery

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Screw size: M8	Battery Size: 22.55*17.13*5.63inch
Battery Weight: 95 lbs	Each battery comes with a pair of battery parallel cables
Certification Test：IEC62619

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 12	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG
