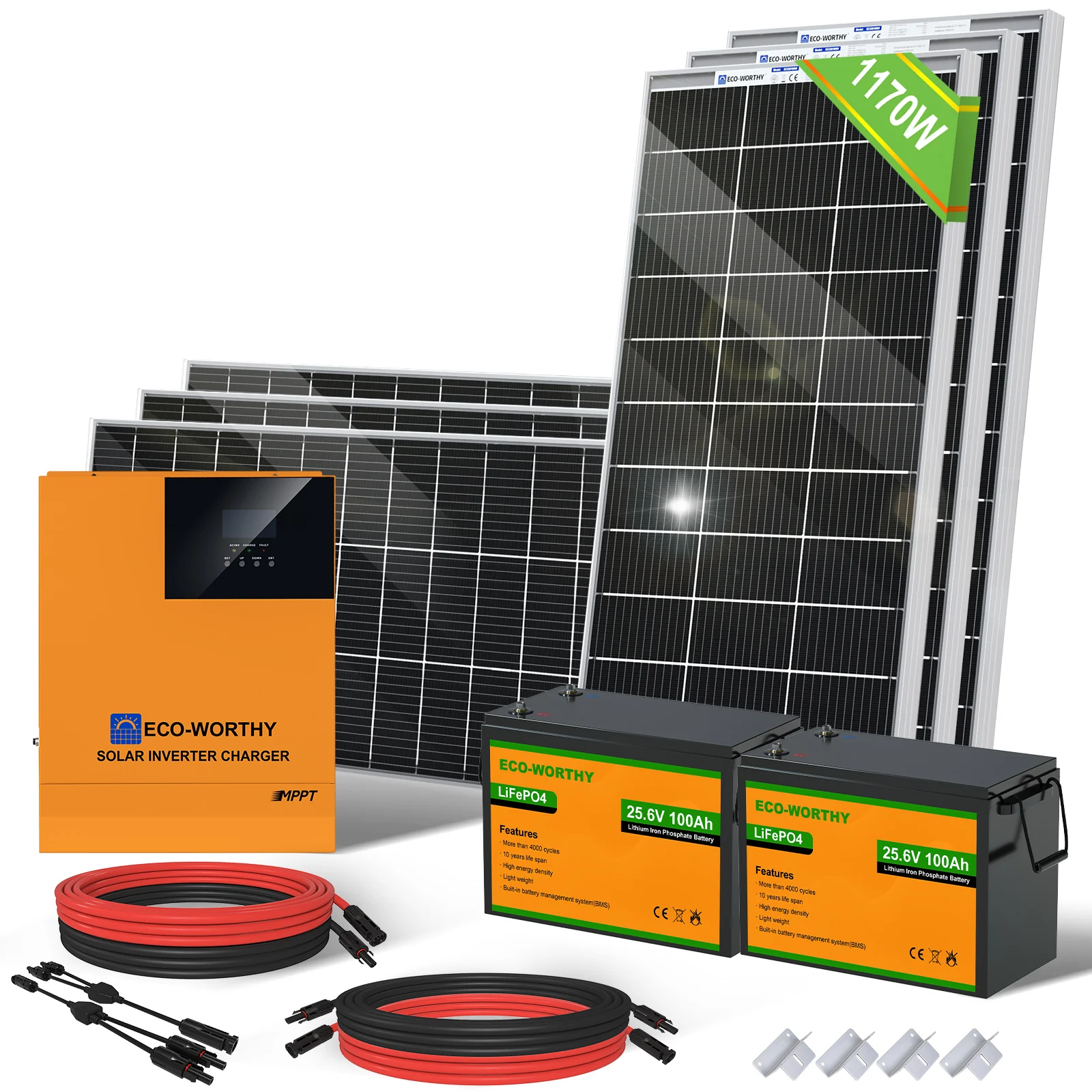

1170W 24V (6x Bifacial 195W) Complete MPPT Off Grid Solar Kit

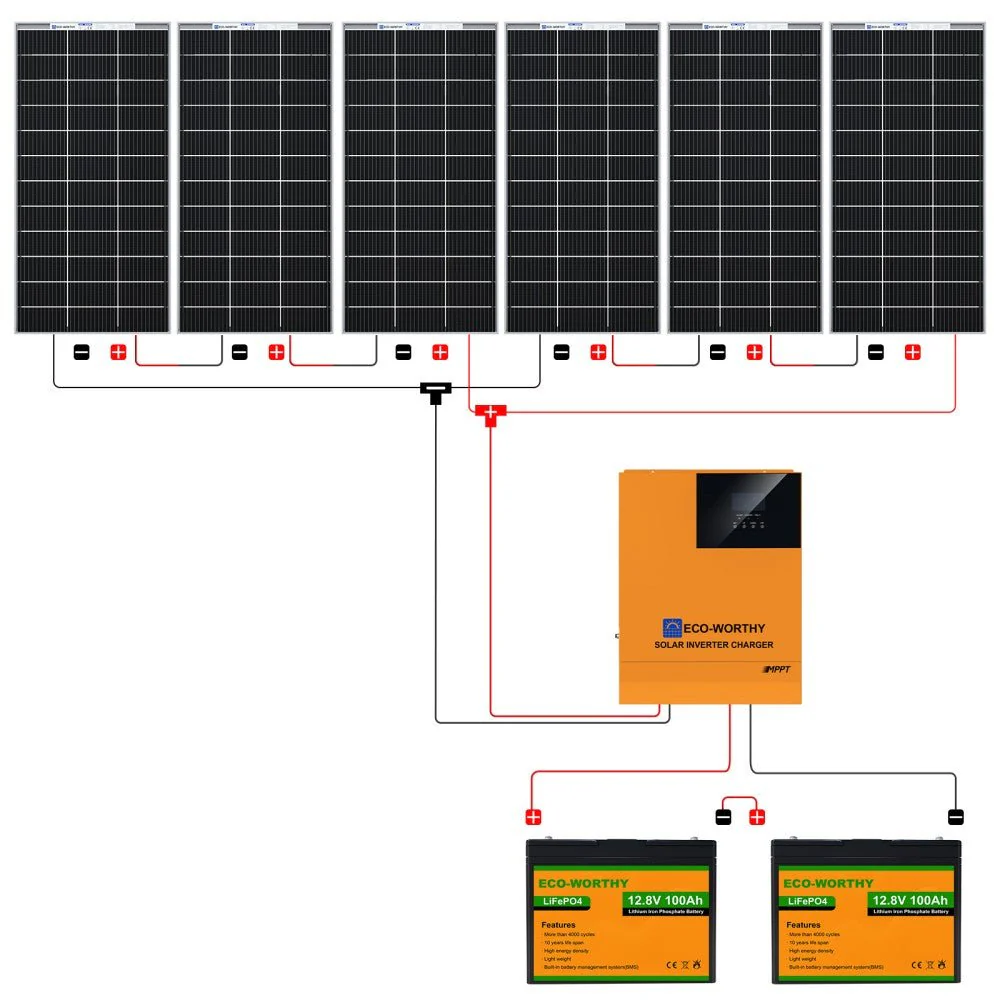

Package Includes
6x Bifacial 195W Mono Solar Panel
1x All-in-one Inverter(3000W 24V Inverter+60A MPPT Controller)
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG MC4-MC4 Extension Cable
6x Z Mounting Bracket
Battery Bank Options-
2.4kWh Lithium Battery Bank (optional)
with
1x 1.5M Tray Cable
2x 100Ah 12V LiFePO4 Lithium Battery
2.4kWh Lithium Battery Bank (optional)
with
1x 1.5M Tray Cable
2x 100Ah 24V LiFePO4 Lithium Battery

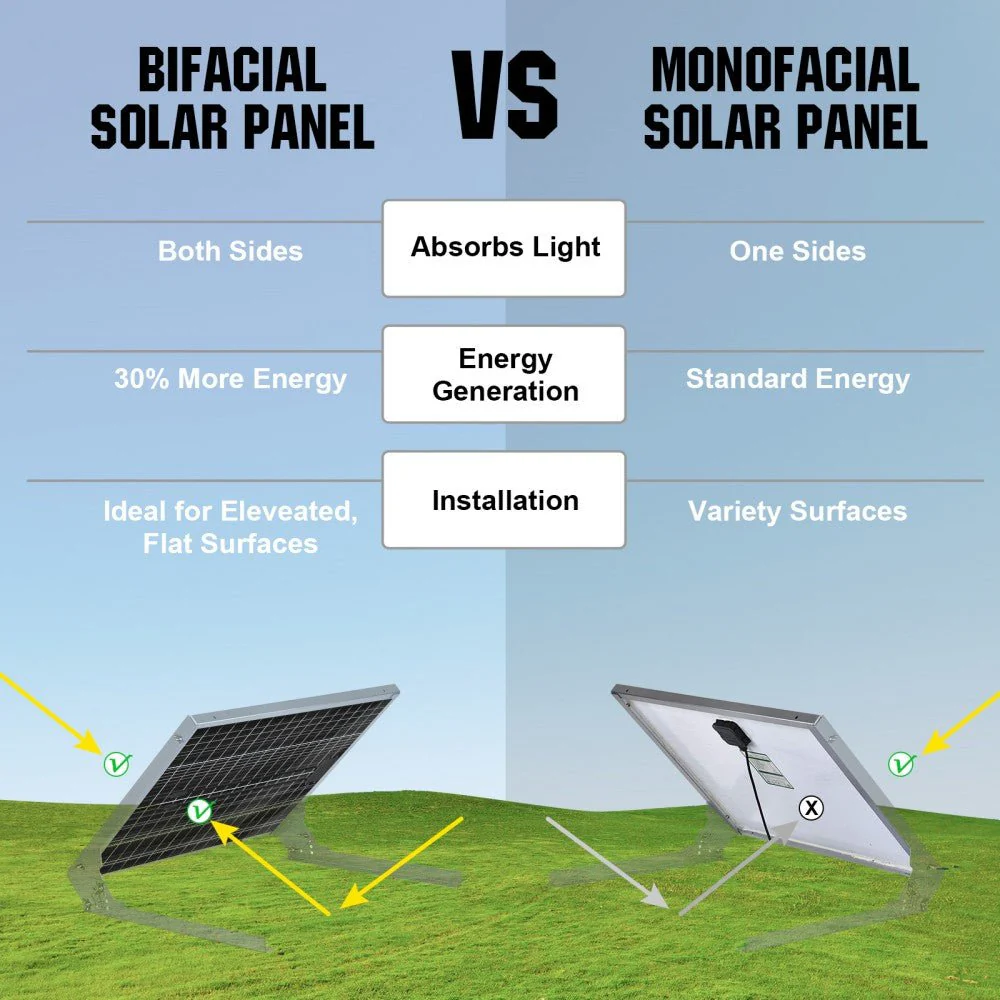

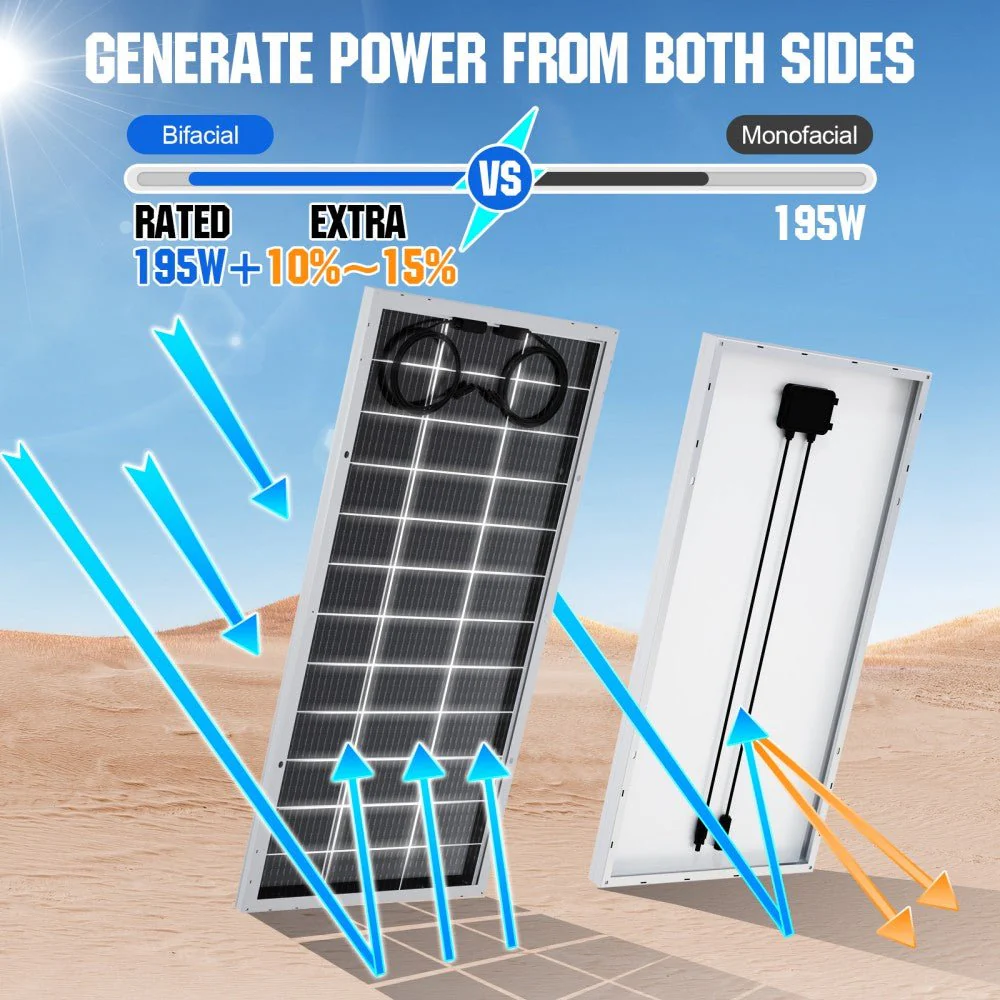

Bifacial 195W Monocrystalline Solar Panel
| Rated Power: 195W | Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 19.8V | Open Circuit Voltage(Voc): 23.7V |
| Short circuit current: 10.5A | Maximum current: 9.85A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.48 lbs(9.29 kg) |

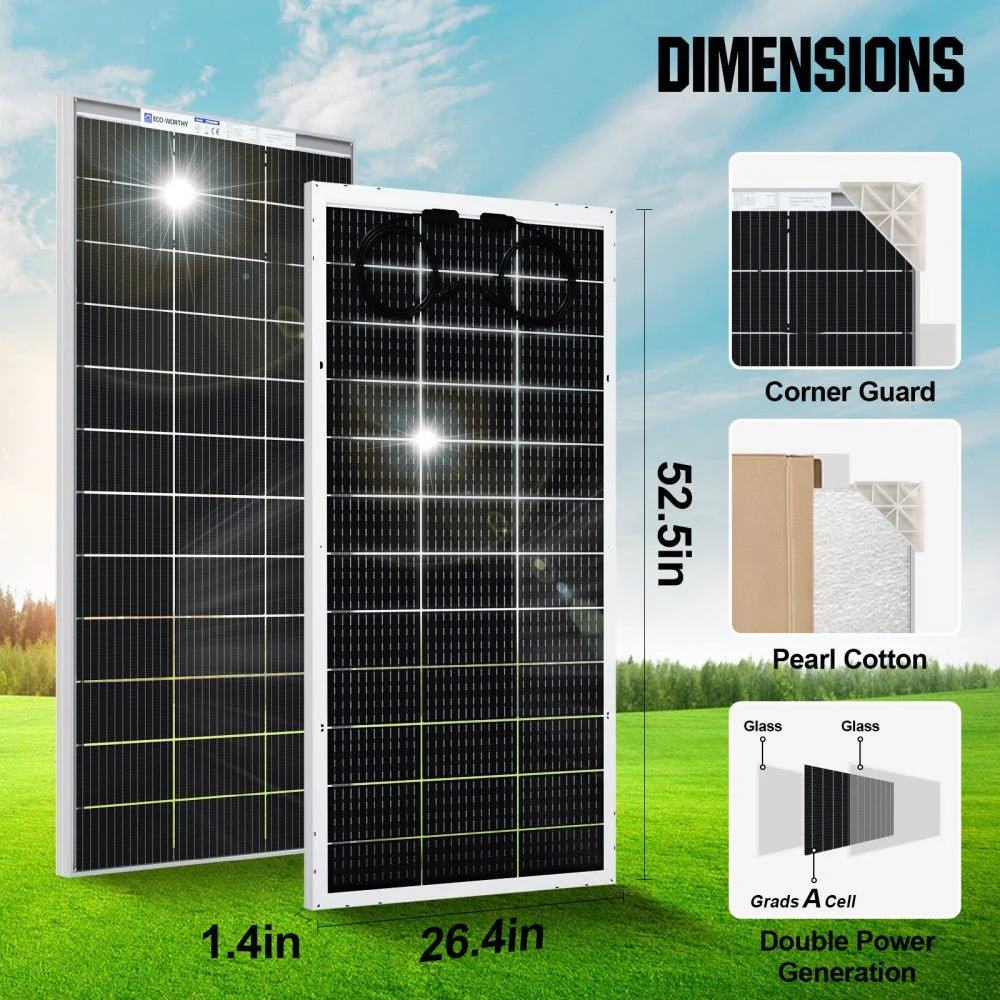

| Size: 52.6x26.38x1.38in (1335*670*35mm) |

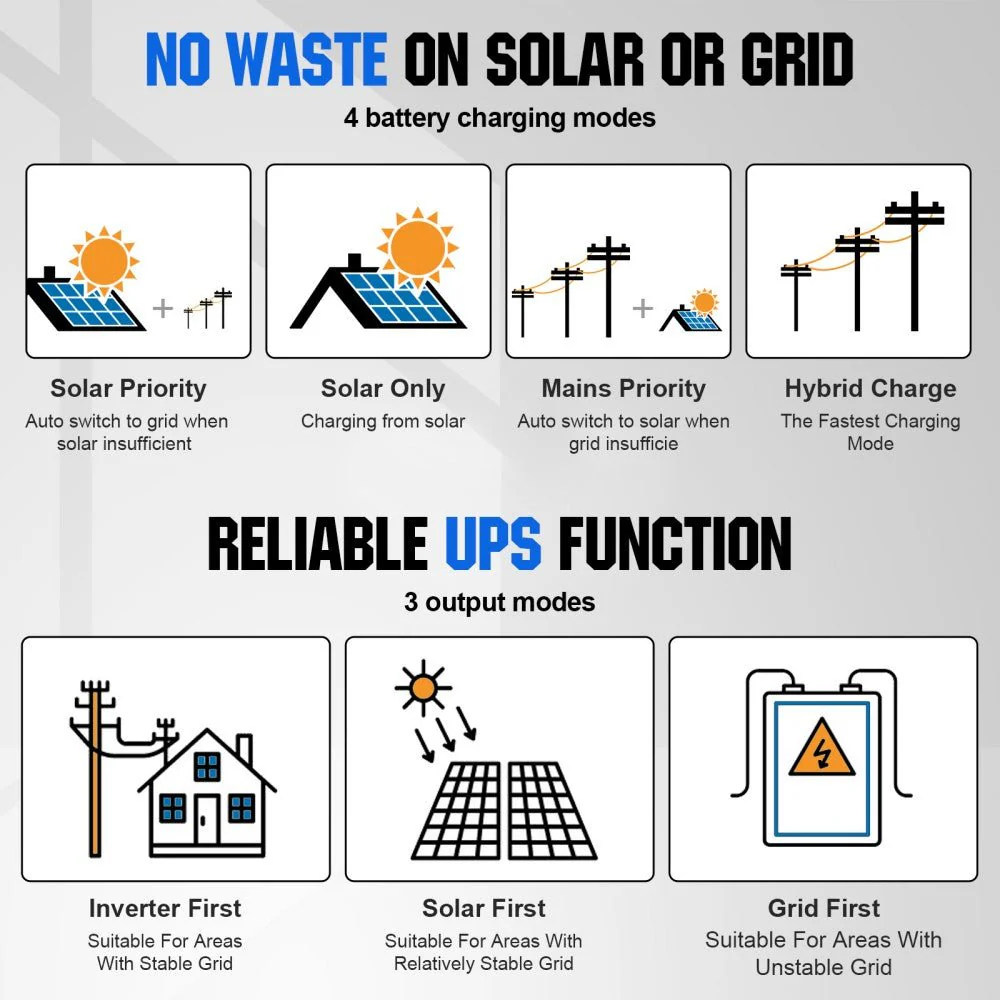

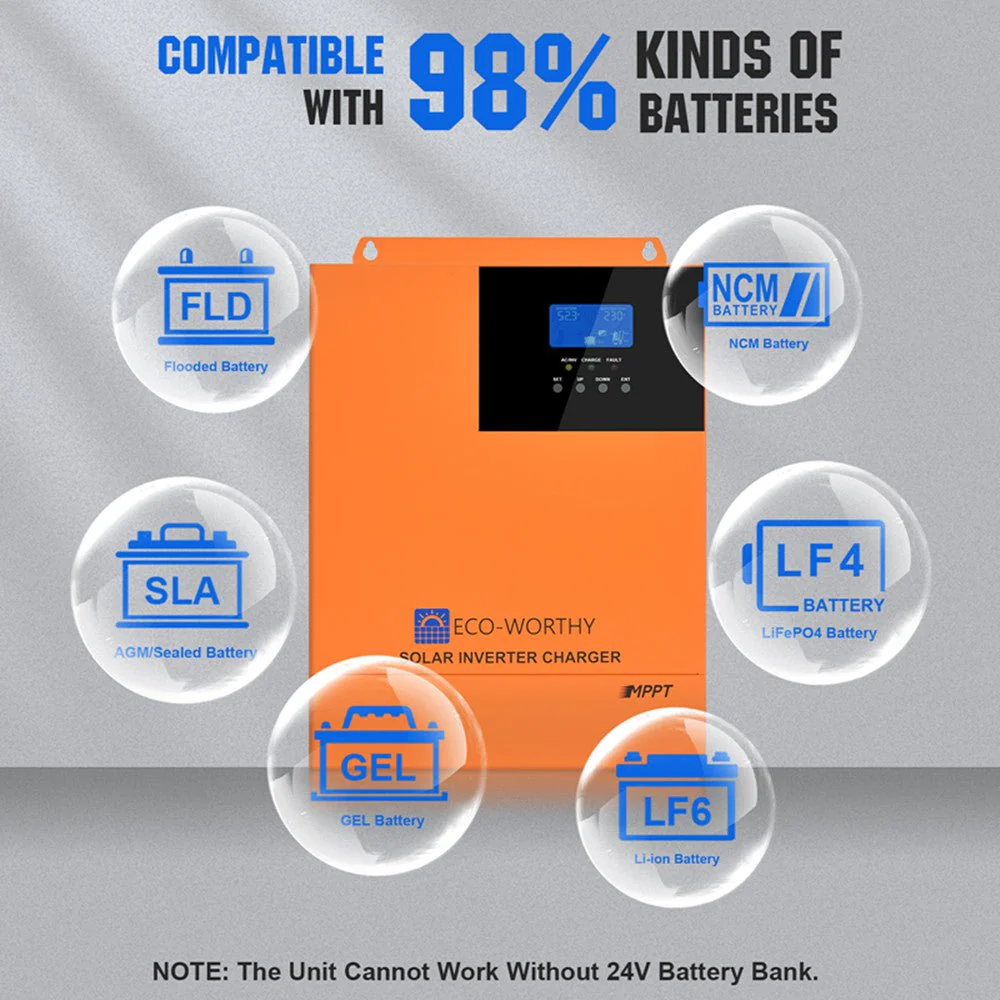

All-in-one Inverter(3000W 24V Inverter+60A controller)
| Solar Charging Mode | |
| Solar Charge Mode: MPPT | PV Charging Rated current: 60A |
| Max Input Power: 1400W | Rated Battery Voltage: 24V |
| Invert Mode | |
| Output Waveform: Pure Sine Wave | Rated Output Power: 3000W |
| Rated Battery Input Voltage: 24V | Rated Output: 220VAC 50Hz/60Hz |
| Peak Power: 6000W | |
| AC/Grid Charging Mode | |
| Rated Input: (170VAC-280VAC)±2% 50Hz/60Hz(auto detect) |

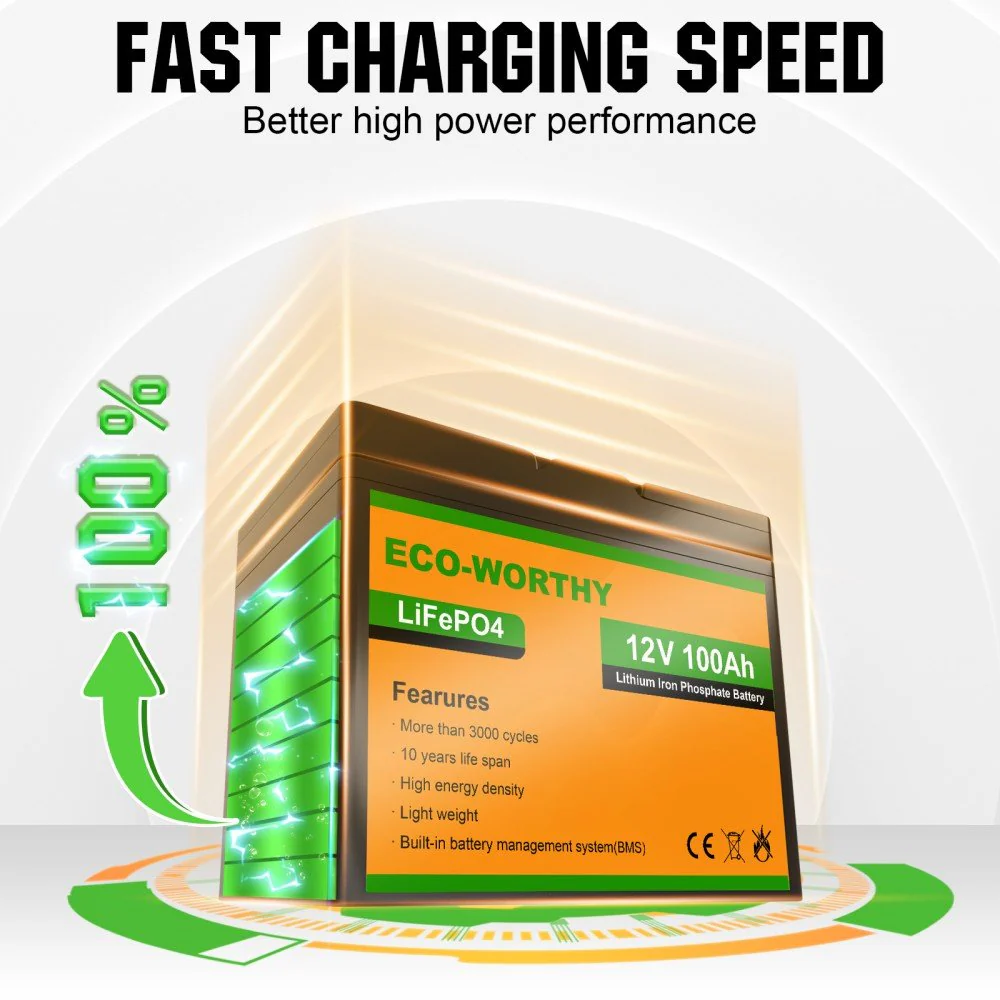

12v 100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100ah | Battery Power: 1280Wh |
| Battery Voltage: 12.8V | Maximum Charge/ Discharge Current: 100A/100A |
| Charge Temperature Range: 0-45℃ | Disharge Temperature Range:﹣20－55℃ |
| Maximum Charge Voltage: 14.6V | Discharge Cut-Off Voltage: 10V |
| Screw size: M8 | Battery Size: 260*168*214mm(10.24*6.61*8.43inch） |
| Battery Weight: 10.5kg(23.15lbs) |
24v 100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah | Battery Power: 2560Wh |
| Battery Voltage: 25.6V | Maximum Charging Current: 100A |
| Maximum Discharging Current: 100A | Max Charge Voltage: 29.2V |
| Operating Temperature: -4°F to 140°F | BMS: Integrated battery management system |
| Terminal: M8 screw | Size: 15.1*7.6*10inch |
| Weight: 44.75lbs |
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） | Conductor: Tinned copper wire |
| AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
| Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
| 4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
